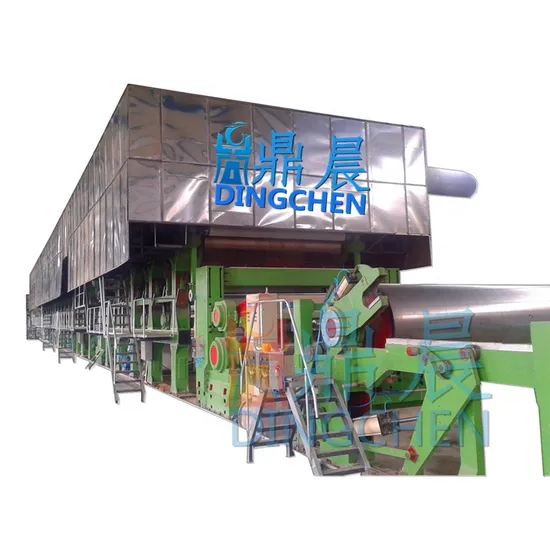

DC-2880mm High Strength Kraft Liner Paper Corrugated Paper Fluting Paper Making Machine

Product Description

DC-2880mm Kraft Liner Paper Corrugated Paper Fluting Paper Making Machine
Solution
I. Technical parameter
1.Raw materials: waste paper
2.Output paper: carton paper,liner paper
3.Output paper weight:100-200 g/m2
4.Capacity: 50 T/D
5.Working speed: 110-120m/min
6.Designing speed:160m/min
7.Rail gauge: 3800mm
8.Drive way: Alternating current frequency converter speed control, sectional drive.
II. The main structure and Equipments
1.Cylinder part: Ф1500mmx 3350mm stainless-steel plate cylinder, 4pcs;
Φ450mm×3350mm couch roll,5 pcs,including one reverse roll;
2.Squeeze part: Φ400mm×3450mm squeeze roll,2 pcs, pneumatic loaded device
3.Pre-press part: Φ650mm×3350mm top roll,one pcs of natural marble stone roll;
Φ600mm×3350mm bottom roll, one pcs of rubber roll; pneumatic loaded device
4.Press part :Φ850mm×3350mm, 2 pcs of natural marble stone rolls ; Φ800mm×3350mm
rubber roll,2pcs; pneumatic loaded device
5.Dryer part: Φ1500mm×3350mm alloy dryer can 12 pcs, 12 sets of blades
6.Calendaring part: Φ450mm×3350mm calendaring roll,2 pcs.
7.Reeling part: 2880 horizontal pneumatic reeler, winding cylinder(Φ1100mm×3100mm)
8.Rewinding part: 2880 frame-type rewinding machine
Company:
we are a professional paper machine manufacturer,here,you can get the whole production line,
we promise you good solution cause that is what we pursue.
so welcome to visit and negotiate.
Perfect service:
1.technical consultation
2.Plant design
3.installation and test run
4.training engineers and workers
5.good and long time after-sale service

The business process
1.send your requirements:raw material,capacity,paper grammage
2.we make the solution to you
3.come visit and negotiate
4.sign contract
5.first payment
6.production
7.pay spare money
8.delivery
9.installation ,training,test run
10.production consultlation

We have a large scale of products regarding paper machinery, including:
A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure
screen, screen basket, pulp pump etc.)
B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper
machine, head box, cylinder mould, dryer cylinder, roller etc.)
C.Paper making finished devices (Paper calender, pope reel,size press,
paper rewinder etc.)
Meet customers' requirements and exceed customers' expects.
We wish to found long-termcooperation with your company.
