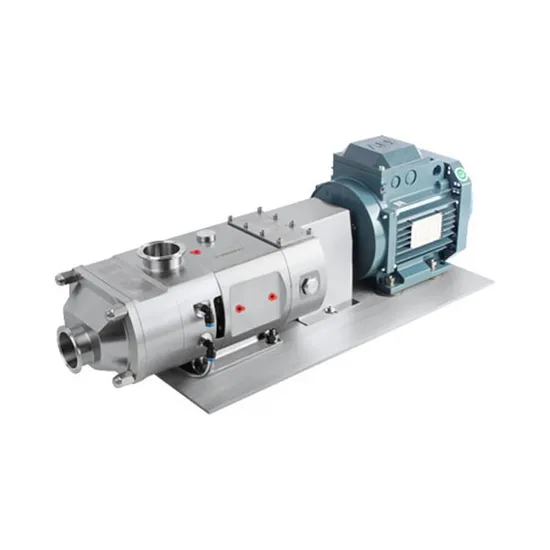

3A Certified Food Processing Twin Screw Food Pump

Product Description

3A Certified Food Processing Twin Screw Food Pump
Twin screw pump, with strong CIP function, it could be transported solid particles, gas-liquid mixture, media with high or low viscosity and so on. It not only could be used to extract and convey madia, but also could be used in CIP and SIP system. It could reduce pipeline, valve and CIP pump, which improve effiency and reduce cost. Such pump also is equipped with the extra advantage such as: no pulse, no particle damage, high pressure, wide speed range, large flow range and so on.
Advantage
Flexible solution for two-direction reversible, high pressure, high viscosity, large particle, pulse free, liquid delivery
Specification

Item:	3A Certified Low Shear Twin Screw Pump for Food Beverage Processing
Inlet & Outlet Sizes	1 1/2″-5″
Contact Material:	SS316L
Seal Material:	FKM(Viton)
Max. Flow:	110 m3/h
Max particles	23mm
Working temperature	-40 degree to 150 degree celsius
Surface treatment	RA 0.6um, RA 0.4um
Speed range:	10-3500 RPM
Mechanical seal:	SIC/SIC/FKM(Standard), Single or double mechanical seal
Working temperature:	-40~150 degree centigrade
Voltage:	110V, 220V, 380V
Motor:	ABB or others
Motor Frequency:	50HZ, 60HZ
Available Connection:	Clamped, Threaded, Flanged
Standard:	DIN, SMS, 3A, RJT, ISO, IDF
Operated:	Electic motor
Certificate:	3-A-02-11 (1759), FDA.177.2600, CE-MD/06-42 NO. 705201402401-00
Application Range:	Mash, Dairy, food, beverage, pharmacy, cosmetic etc
Packaging Details:	Plywood case

• Delicate, Low Shear Product Handling
• Ability to Pass Soft Solids up to 2.5" in Diameter
• Ability to Run up to Speeds of 3,500 RPMs
• Able to Generate the Velocities Required for CIP, with No Separate CIP Return Pump Required!
• Fully CIP-able
• Ability to Run Dry for Extended Periods of Time
• High Suction Capability • Smooth, Virtually Pulse-Free Delivery of Product
• High Resistance to Abrasive Products
