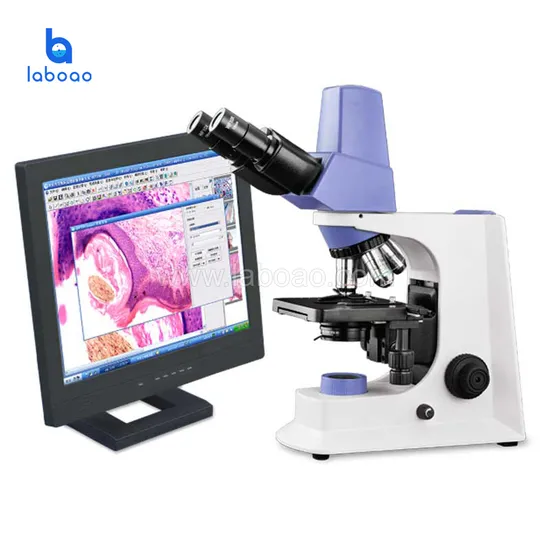

Digital Camera Biological Microscope for Advanced Teaching and Clinical Examination

Product Description

Digital Camera Biological Microscope for Advanced Teaching and Clinical Examination
A biological microscope is a precision optical instrument used to observe biological sections, biological cells, bacteria, living tissue culture, and fluid sedimentation. It can also observe other transparent or translucent objects as well as objects such as powder and fine particles. The biological microscope is used for the observation of microorganisms, cells, bacteria, tissue culture, suspensions, sediments, etc. in medical and health units, universities, and research institutes. It can continuously observe the process of cell and bacteria reproduction and division in culture fluid Wait. It is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, and botany. Its optical technical parameters include: numerical aperture, resolution, magnification, focal depth, field of view width, poor coverage, working distance, etc. These parameters are not all as high as possible. They are both interrelated and restricted. In practical applications, the relationship between the parameters should be coordinated according to the purpose of the microscopy and the actual situation on the basis of ensuring the resolution.
Feature

LBM-S1,S2,S3,S4
1 Excellent OTICS infinity optical system, outstanding resolution and definition.
2 Original integrated stand for excellent stability.
3 Unique aspheric illumination system, provide bright and comfortable lighting.
4 Various colorful matching looking can provide lively environment and happy mood.
5 Various accessories for upgrading.
6 Back handle and observing hole convenient for carry and operation.
7 Alternative color for main body.
LBM-E320 /E500
1 Dustproof, moisture-proof, built-in chip.
2 Light distribution 20:80, eyepiece observation synchronized with digital imaging without switching.
3 Built-in 3MP/5MP digital camera system,1/2''CMOS color sequential scanning.
4 USB2.0 connection without external power supply.
5 Available for WINDOWS system.
Specification

Items	Specification	LFM-S1	LFM-S2	LFM-S3	LFM-S4
Eyepiece	WF 10X-18mm	Y
	WF 10X- 20mm		Y	Y	Y
Finity Achromatic Objective	4X	Y
	10X	Y
	40X(S)	Y
	100X/1.25 (Oil) (S)	Y
Finity Plan Objective	4X		Y
	10X		Y
	40X/0.65 (S)		Y
	100X/1.25 (Oil) (S)		Y
Infinity E-Plan Objectives	4X			Y
	10X			Y
	40X (S)			Y
	100X (Oil) (S)			Y
Infinity Plan Objectives	4X				Y
	10X				Y
	40X (S)				Y
	100X (Oil) (S)				Y
	Plan 20X			O	O
	Plan 60X (S)			O	O
Seidentopf Binocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm	Y	Y	Y	Y
Seidentopf Trinocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Distribution 20:80	O	O	O	O
	3.2/ 5 MP Pixel Digital Head 1/2''CMOS color sequential scanning. SB2.0 Light Distribution: 20:80	O	O	O	O
Nosepiece	Quadplex , Quintuple (Optional)	Y	Y	Y	Y
Mechanical Stage	Stage Size: 145 mm×140mm Travel: 76mmX52mm, Scale: 0.1mm Coaxial Coarse and Fine Focusing Knobs Travel Range: 26mm, Scale: 2um Two Slide Holder	Y	Y	Y	Y
	Rackless(Integrated) stage, size: 140×135mm,Travel range: 75×35mm, Two-slide holder	O	O	O	O
Condenser	Abbe N.A. 1.25(Iris Diaphragm)	Y	Y	Y	Y
Illumination	3W-LED Illumination Systems	Y	Y	Y	Y
	12V/20W Halogen Lamp	O	O	O	O
	6V/30W Halogen Lamp	O	O	O	O
Field Diaphragm		O	O	O	O
Dark Field Condenser	Dry, apply to 4X - 40X objective	O	O	O	O
Polarizing Attachment	Analyzer/Polarizer	O	O	O	O
Independent phase contrast unit	10X /20X /40X /100X			O	O
Fluorescence Attachment	Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp.			O	O
	Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp.			O	O
Filter	Blue /Green /Yellow	O	O	O	O
C-Mount	1X/ 0.5X/0.75X (Focus adjustable)	O	O	O	O
Mirror		O	O	O	O
Wire winding device		O	O	O	O

Items	Specification	LFM-E320	LFM-E500
Eyepiece	WF 10X-20mm	Y	Y
Infinity EPlan Objective	4X	Y	Y
	10X	Y	Y
	40X/0.65 (S)	Y	Y
	100X/1.25 (Oil) (S)	Y	Y
Seidentopf Binocular Head	Inclined 30°,Rotatable 360°,Interpupilary Distance: 50-75mm	Y	Y
Nosepiece	Quadplex	Y	Y
Mechanical Stage	Stage Size: 145mm×140mm Travel: 76mm×52mm, Scale: 0.1mm,Two Slide Holder	Y	Y
Condenser	Abbe N.A. 1.25(Iris Diaphragm)	Y	Y
Illumination	LED Illumination Systems	Y	Y
	6V/20W Halogen Lamp	O	O
	6V/30W Halogen Lamp	O	O
Image Systems		3.2MP Pixel	5 MP Pixel

Note: "Y"In Table Is Standard outfits, "O" Is Optional Accessories.
