Z3032/Z3040/Z3050 Hydraulic Automatic Feed Electric Radial Drilling Machine

Z3032/Z3040/Z3050 Hydraulic Automatic Feed Electric Radial Drilling Machine

US$4,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3032/Z3040/Z3050
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Rocker Arm Rotation Angle
360
Horizontal Moving Distance of Spindle Bo
1250mm
Spindle Feed
0.10/0.16/0.22/0.25/0.35/0.56
Maximum Allowable Resistance of The Spin
16000n
Main Motor Power
4kw
Lifting Motor Power
1.5kw
Machine Weight
2000kg
Overall Dimensions
2170*950*2450
Transport Package
Export Wooden Cases
Specification
2170*950*2450
Trademark
JAOS
Origin
Shandong, China

Product Description


Product Description
Product Parameters

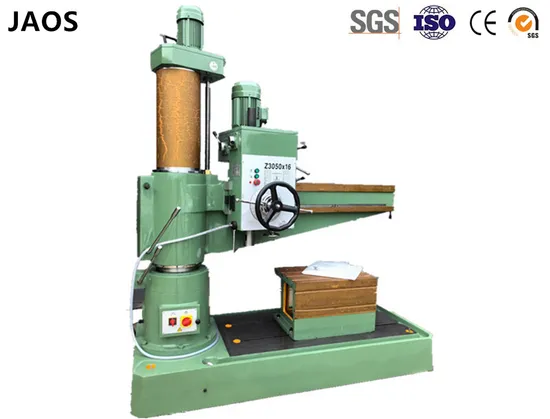

The main parameters Z3050×16 Radial Drilling Machine
Maximum drilling diameter 48/50 (steel/casting) mm
Distance from spindle centerline to column generatrix (minimum - maximum) 360-1600 mm
Distance from spindle end to base table (minimum-maximum) 300-1150 mm
Spindle travel 220 mm
Spindle taper MT.5
Spindle speed stages 6 Level
Spindle speed range 78.135.240.350.590.1100 r/min

Z3050x16/1 type rocker arm drilling machine, the machine speed and feed by a wide range of variable speed range, can be motorized, manual and micro-manipulation, can be at any time easy to turn on or cut off the feed. The feed safety mechanism is safe and reliable, and the clamping of each part is convenient and reliable. The spindle box has a small displacement error when unclamping, the variable speed control mechanism is concentrated on the spindle box, which is easy to operate and change the speed, and the hydraulic preselection of spindle speed and feed is quick, accurate and sensitive.
Adopting advanced structure, new technology, new process, perfect performance, simple structure, flexible operation, reliable work, high precision, long service life, easy maintenance, widely used in drilling, reaming, reaming and tapping threads in machining.
Detailed Photos
Packaging & Shipping
