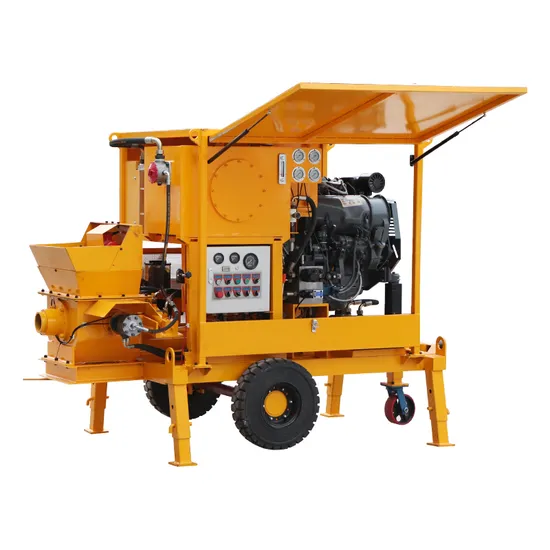

Hot Sale Diesel Engine Trailer Concrete Pump with Ce Certificated
| US$9,000.00-26,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LCP8/80-30D
Shotcrete Type
Wet
Machining Process
Hydraulic
Productivity
3-8m3 /H
Certification
ISO9001: 2000, CE, SGS
Condition
New
Color
Yellow
Pump Work Pressure
38 Bar
Cylinder Diameter
100mm
Cylinder Stroke
550mm
Concrete Slump
7 -15cm
Acceptable Max. Aggregate Size
20mm
Conveying Hose Inner Diameter
100/80/50mm
Net Weight
1650kg
Transport Package
Standard Export Packing or as Your Request
Specification
2200*1250*1600mm
Trademark
Leadcrete
Origin
China
HS Code
8413400000
Production Capacity
1000 Set/Year
Product Description
Product DescriptionHot Sale Diesel Engine Trailer Concrete Pump with Ce Certificated
LCP8/80-30D Concrete Pump is a multi-purpose heavy-duty Swing-Valve concrete pump with an air cooling diesel engine, hopper mixer, hopper vibrator, automatic lubrication, and LS variable output. The concrete convey, Swing valve, and hopper mixer are respectively driven by three hydraulic pumps, among them, the concrete conveys hydraulic pump is LS piston high-pressure pump.
Detailed Photos
Product Parameters
Features:
Variable output(LS)
Automatic Lubrication
Vibrator in hopper
Mixer in receiving Vibrator in hopper
Mixer in receiving hopper
| Model | LCP8/80-30D |
| Rated Output | 3-8m3 /h (LS) |
| Pump work pressure | 38 Bar |
| Acceptable Max. Aggregate Size | 20mm |
| Cylinder diameter | 100mm |
| Cylinder Stroke | 550mm |
| Pump Valve | S Valve |
| Max. Horizontal Conveying Distance | 200m |
| Max. Vertical Conveying Distance | 100m |
| Concrete Slump | 7 -15cm |
| Conveying Hose Inner Diameter | 100/80/50mm |
| Diesel engine | 30kw@1800rpm 4-cylinder, air cooling |
| Dimension(L × W × H) | 3000*1600*1900mm |
| Net Weight | 1650kg |
Let's get in touch for more information! Typical Applications
