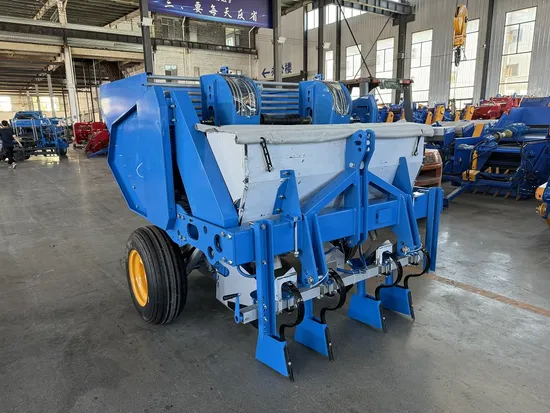

Hongyou New Potato, Carrot, Onion, Garlic, Planter 2cm-2A

Product Description

Product Description
Basic Info.

	2CM-2A PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	10	Matching Hanging Width	600mm
2	Walking mode	Wheel Type	11	Fertilizer Box Volume	0.15m³
3	Working dimensions (length*width*height)	1960*1850*1620mm	12	Seed Box Volume	0.3m³
4	Transport dimensions (length*width*height)	1960*1850*1620mm	13	Ridge Width	170-420mm
5	Overall Weight	700kg	14	Bed Width	370-620mm
6	Working Width	1130mm	15	Ridging Height	230mm
7	Operation Efficiency	Estimated 0.13 ha/h	16	Conveyer Type	Central Pull Rod
8	Supporting Power/Machine Horsepower	≥70Hp	17	Number of Ridges/Rows	Double ridges and double rows
9	Matched To The Power Output Shaft Speed	540r/min
Note: The values in the specification table are theoretical values, please refer to actual values.

Product Description
Automated potato planter
Improve seeding efficiency
- Swift operation speed: Modern seeders generally use tractors as a powerful power source, with a significantly increased driving speed. Compared with traditional seeding methods, they can cover a larger area per unit time and complete large - scale seeding tasks in a short time, greatly accelerating the seeding process.

Ensure seeding quality
- Uniform and precise seeding: Through precise seed - metering design, seeds are orderly discharged into the seed - conveying pipe according to the pre - set seeding rate, ensuring that the number of seeds sown in each area meets the planting requirements and laying the foundation for the uniform growth of crops in the future.
Detailed Photos
Certifications
Packaging & Shipping
Detailed PhotosProduct ParametersPackaging & Shipping

Company Profile
Company Profile
Dezhou Hongyou Agricultural Machinery Co., Ltd.
Dezhou Hongyou Agricultural Machinery Co., Ltd. is located in Ningjin County, Shandong Province, which is known as the "Agricultural Machinery City". Established in 2002, the company has 22 years of processing history and experience, and is a high-tech manufacturer focusing on agricultural machinery products for underground root crops.

Our main products include five series of more than 55 varieties, such as potato harvester machines, mulch film recovery machines, field stone picking machines, ridging and mulching machines, and seeding killer machines.

The company has passed the ISO9001-2008 quality system certification. We will always adhere to the business philosophy of "quality first, customer first", use advanced technology and professional products to make modest contributions to the modernization of agriculture. We sincerely invite partners from all over the country to join us in cooperation and jointly promote the modernization of agriculture, create a brilliant future for agricultural machinery. We warmly welcome both new and old.

We have an old factory area and a new factory area under construction for producing and processing machines. There are finished product stacking area, machine processing area and production workshop. Our Advantages
Customer visit factory
