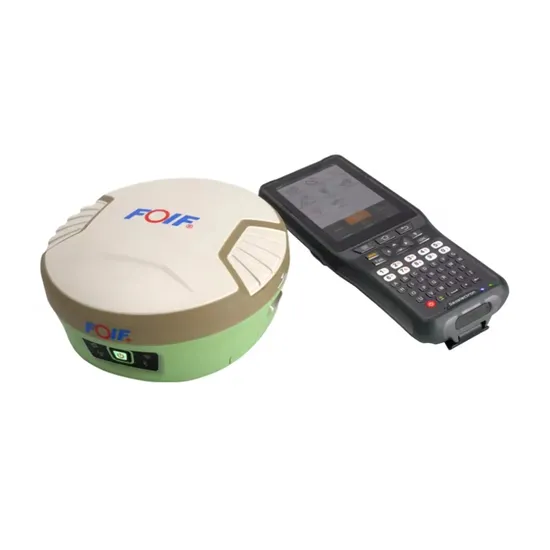

Best Price Foif A90 Gnss Receiver 1408 Channels Surveying Equipment Foif A90 GPS Rtk Gnss

Product Description

Product Description
specification

Model		A90
GNSS	Channels	800
	Signals	BDS: B1, B2, B3
		GPS:LICA/LIP/LIC/L2P/L2C/L5
		GLONAS:Gl/G2, PI/P2
		Galileo:E1, E5A. E5B, E5AltBOC, E6
		Qzss:LICA/L2C/L5/LIC
Accuracy	Static	H: 2.5 mm±1ppm , V: 5 mm±1ppm
	RTK	H: 8 mm±1ppm, V:15 mm±1ppm
	DGNSS	<0.5m
	ATLAS	8cm
System	Initialization Time	8s
	Initialization Reliable	99.90%
	Operating System	Linux
	Merrory	8GB, support expanable MisroSD
	Wifi	802.11 b/g/n
	Blue Tooth	V2.1+EDR/V4.1Dual,Class2
	E-Bubble	support
	Tilt Survey	IMU Tilt Survey 60°,Fusion Positioning/400Hz refresh rate
Datalink	Audio	support TTS audio broadcast
	UHF	Tx/Rx Internal Radio, 1W/2W adjustable, radio support 410-470Mhz
	Protocol	support GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH,hi target
	Network	4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS)
Physical	Interface	1*TNC Radio Antenna, 1*5Pin(Power & RS232),1*7Pin (USB 81 RS232)
	Button	1 Power Button
	Indication Light	4 Indication Lights
	Size	Φ156mm * H 76mm
	Weight	1.2kg
Power supply	Battery capacity	7.2V, 24.5Wh(standard two batteries)
	battery Life Timer	Static Survey: 15 hours, Rover RTK survey: 12h
	External power source	DC 9-18V, with overvoltage protection
Environment	Work Temporature	-35ºC ~ +65ºC
	Storage Temporature	-55ºC ~ +80ºC
	waterproof&dustproof	IP67
	Humidity	100% condensing
