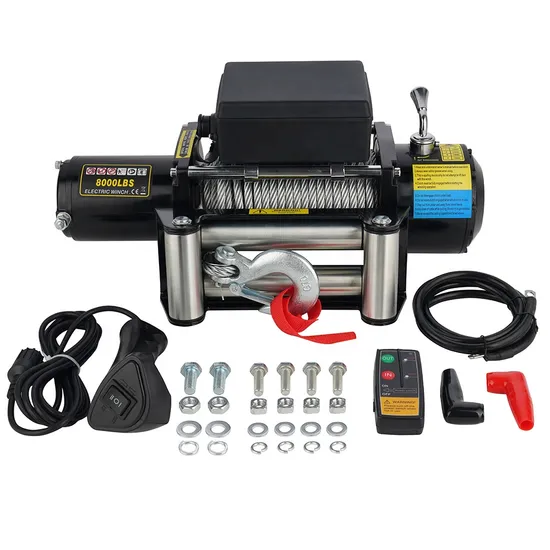

8000lbs off Road Electric Winches 12V Roller Fairlead Electric Universal Car Winch
Basic Info.
Model NO.
AT-8000lbs
Power Type
Permanent-magnet DC
Electric Winch Model
ATV
Brand
Antai
Applicable Environment
Mountain Road
Transport Package
Carton and Pallet
Specification
1pc/carton
Origin
Ningbo, China
HS Code
84253190
Production Capacity
10000 Sets Per Month
Product Description
Pure copper motor and power cable, waterproof control box, steel gears
12V DC 8000 lbs rated line pull 4.1 HP pure copper motor Waterproof control box 3m handheld wired remote Pull-and turn clutch handle 3-stage planetary gearing with 235:1 ratio 8.3mmx26m steel wire rope Heavy duty clevis winch hook Stainless steel 4-way roller fairlead 100% full load holding automatic mechanical brake IP68-rated waterproof and dustproof winch 8000 LBS FEATURES AND SPECIFICATIONS
| Rated Line Pull | 8000LBS (3629kgs) single line |
| Motor | 3.0kw/4.1hp, permanent magnet |
| Control | Remote switch, 9.8ft(3.0m)lead |
| Gear train | 3 Stage Planetary |
| Gear train ratio | 235:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Automatic In-The-Drum |
| Drum Size | Φ2.5"(64)mm×(8.8")233.5mm |
| Cable | Φ8.3mmX26m |
| Overall Dimensions | 19.8"x6.3"x8.5"(503mm×160mm×217mm) |
| Mounting Bolt Pattern | 255mm×114mm Φ11 |
| Weight | N.W.33kg G.W.35Kg |
| Packing Size | 610×350×270mm |
PULL, SPEED, AMPERES, VOLTS
| Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
| 0 | 9.8(3.0) | 30 |
| 2000(907) | 7.5(2.3) | 120 |
| 4000(1814) | 4.9(1.5) | 210 |
| 6000(2722) | 3.9(1.2) | 250 |
| 8000(3629) | 2.9(0.9) | 270 |
LINE PULL AND ROPE CAPACITY IN LAYER
| Layer | Rated Line Pull lbs(kgs) | Total Rope on Drum ft(m) |
| 1 | 8000(3629) | 13(5) |
| 2 | 6540(2966) | 23(11) |
| 3 | 5550(2517) | 69(21) |
| 4 | 4800(2177) | 92(28) |
