Wholesale 4 Axis 1325 Atc CNC Router for 3D Wood and MDF Engraving
Basic Info.
Model NO.
A8-1325-L8
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V
Model
A8-1325-L8
Working Size
1300*2500
Z Axis Height
400mm
Spindle
Hqd 9kw Atc Spindle
Spindle Cooling
Air Cooling
Guide Rail
25mm Square Guide Rail and Rack
Motor
1000W Servo Motor and Drive
Reducer
Shimpo
Controller
Syntec 60we
Table
Vacuum Table
Vacuum Pump
7.5kw
Dust Collector
3kw
Software
Artcam
Weight
1500kw
Package
Wooden Box
Transport Package
Wooden Package
Specification
16 cbm
Trademark
SIGN-CNC
Origin
China
HS Code
8465990000
Production Capacity
1000set/Year
Product Description

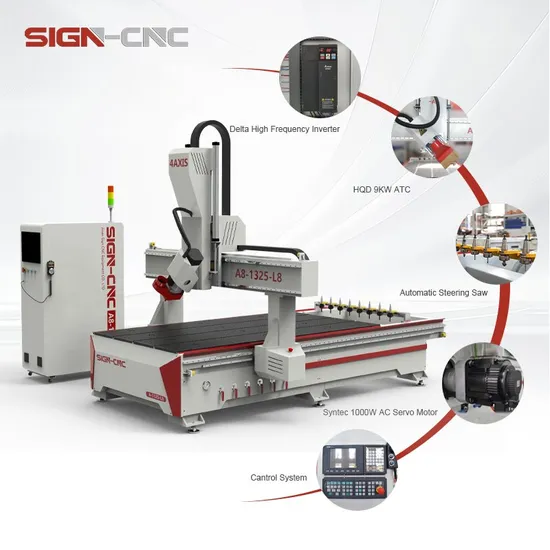

4 Axis Atc Carousel Linear CNC Router| Model | A8-1325-L8 |
| X, Y Working size | 1300x2500mm |
| Z feed Height | 400mm |
| Table Surface | Vacuum table |
| X, Y Structure | Rack and Pinion Drive, 25mm Linear Square Guide Rail |
| Z Structure | 25mm Linear Square Guide Rail and Ball Screw |
| Max. Power Consumption | (Without spindle) 2.0Kw |
| Max. Rapid Travel Rate | 33000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 9.0KW HQD spindle ATC |
| Spindle speed | 0-24000RPM |
| Tool Magazines | Carousel Tool magazines 8pc |
| Drive Motors | 1000W Bus Servo motor and driver Zaxis with brake |
| Working Voltage: | AC380V/50/60Hz |
| Command Language | G code |
| Control System | Syntec 60WE |
| X,Y,Z repositioning Accuracy | ±0.01mm |
| X,Y Resolution | <0.01mm |
| Software | Artcam |
| Running Temperature | 0 degree - 45 degree |
| Relative Humidity | 30% - 75% |
| Package | Wooden Box |
| Table | Loading and Unloading table |
