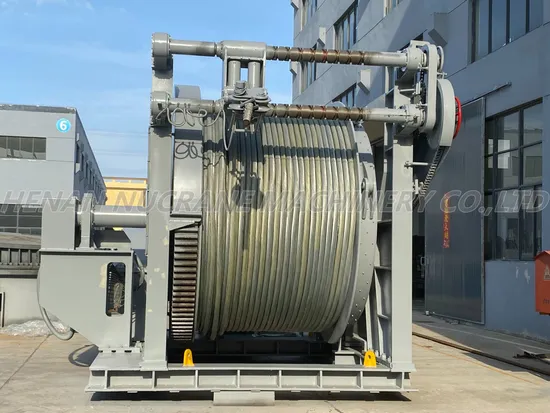

Deck Pulling 50ton Hydraulic Towing Winch

Product Description

Marine hydraulic winch
The working principle of hydraulic winch is mainly based on hydraulic transmission technology, which transmits pressure energy through the hydraulic system to drive the winch drum to rotate, thereby achieving the lifting and lowering of heavy objects. It is usually composed of a power unit, an execution unit, a control unit, and an auxiliary unit. Through the collaborative work of these units, hydraulic winches can achieve stable and safe lifting of heavy objects, and are widely used in fields such as ships, lifting, road construction, and mine lifting.
Types of hydraulic winch are divided into: built-in hydraulic winch, exposed hydraulic winch, high-speed hydraulic winch, low-speed hydraulic winch, hydraulic winch usually by the hydraulic motor, control valve, gear boxes, rollers, brackets, (clutch) Rope, installation bracket and other combinations.
In terms of structure, the winch is characterized by compact structure, beautiful appearance, small volume and light weight;
Function: the hydraulic winch has the characteristics of safety and efficiency, large starting torque, good low-speed stability, low noise and reliable operation;
Application: marine hydraulic winch can be used for ship deck, port, offshore platform, etc. They can be used for anchoring, mooring, towing and other offshore operations. To meet different operation requirements, we provide marine hydraulic towing winch, hydraulic anchor winch and hydraulic mooring winch.
Product advantages
1) Only flow restrictors and manifolds are on the outside of the drum. Hydraulic motors and shell to drive devices and other components are hidden in the winch drum, so the axial size is small, compact, beautiful appearance;
2) Starting efficiency and transmission efficiency, low energy consumption, reliable, long service life;
3) low noise during operation;
4) good economic performance.

The types of winches produced by our company include mooring winches,towing winches,positioning winches,anchor winches,trawl winches, cargo winches, engineering winches, friction winches, waterfall winches, etc. In terms of driving form, besides hydraulic drive, there are diesel and electric forms. Their workloads range from a few tons to several hundred tons, and can meet the needs of various marine vessels, marine operation platforms, nearshore operations, and more.

Name	Rated pull(kN)	Rated Speed(m/min)	Drum Capacity(m)	Motor Power(kW)
10kN hydraulic winch	10	≥12	¢11×150	5.5
20kN hydraulic winch	20	≥12	¢15×150	11
40kN hydraulic winch	40	≥15	¢17.5×151	22
50kN hydraulic winch	50	≥15	¢20.5×152	30
75kN hydraulic winch	75	≥15	¢26×153	45
100kN hydraulic winch	100	≥12	¢30×200	45
160kN hydraulic winch	160	≥12	¢32×250	75
200kN hydraulic winch	200	≥9.6	¢41×250	75
250kN hydraulic winch	250	≥9.6	¢44.5×250	90
315kN hydraulic winch	315	≥7.8	¢52×250	90
400kN hydraulic winch	400	≥7.8	¢56×250	110
450kN hydraulic winch	450	≥6	¢56×250	110
500kN hydraulic winch	500	≥6	¢58×250	110
560kN hydraulic winch	560	≥6	¢64×250	132
600kN hydraulic winch	600	≥6	¢64×250	132
650kN hydraulic winch	650	≥5	¢70×250	132
1000kN hydraulic winch	1000	≥4	¢85×250	132
1200kN hydraulic winch	1200	≥4	¢95×250	160
1500kN hydraulic winch	1500	≥4	¢95×250	200
1800kN hydraulic winch	1800	≥4	¢95×250	250
2000kN hydraulic winch	2000	≥4	¢100×250	270

Notes:This form has not been listed in the specification and dimension can be customized according to user's requirements.
