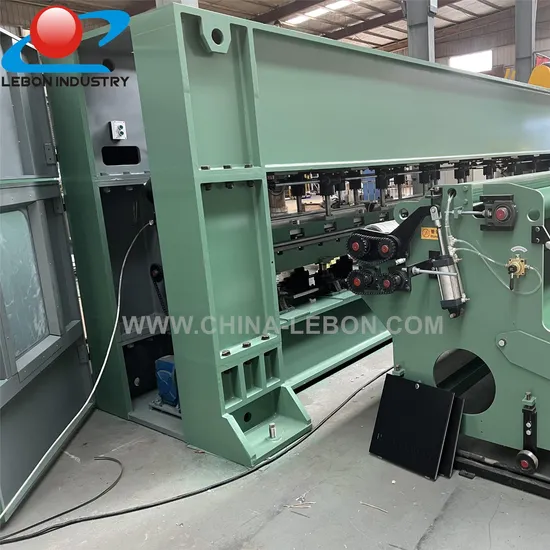

High Speed Nonwoven Needle Punching Machine Production Line for Geotextile
| US$80,000.00-100,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LBZC-01
Automatic Grade
Automatic
Certification
CE, ISO9001: 2000
Customized
Customized
Condition
New
After-sales Service
Installation and training
Suitable
Geotextiles or Other Needle Punching Products
Control
PLC Touch Screen or Button
Type
Nonwoven Textile Machine
Speed
High Speed, Middle Speed Customerized
Key
Needle Punching Carpet Machine
Key Words
Geotextile Cutting Machine
Name
Geotextile Fabric Machine
More Function
Geotextile Sewing and Welding Machine
Suit for
Machine Woven Geotextile
Function
Geotextie Fabric Manufacture Machines
Test
Non Woven Fabric Needle Punching Production Line /
Use
Non Woven Fabric Needle Punching Production Line
for Felt
Geotextile Felt Making Machine
Stitching
Stitching Machine for Geotextile
Geotextile Fabric
Geotextile Fabric Making Machine
Transport Package
Export Standard
Specification
2-9.5meter customerized
Trademark
Lebon
Origin
China
HS Code
8449009000
Production Capacity
100-1000kg/H Customerized
Packaging & Delivery
Package Size
2500.00cm * 1200.00cm * 1800.00cm
Package Gross Weight
800.000kg
Product Description
Nonwoven Needle Punching Machine for Geotextile MakingProduct Description
Applications:
Needle punching machine line technology process is the very common and prevailing process in the nonwoven industrial.
With diverse machine combination and designs, needle punch production line is applicable for producing various felt, carpet, geotextile, shoe lining, filtration material, substrate layer for synthetic leather and asphalt felt, and other hundreds of innovative nonwoven products.
Geotextiles Production Line can make all kinds of needle punching geotextiles or other needle punching products. This needle punching machine production line can have additions such as batt and/ or felt drafters. Needle looms of diffrent needle types and/ or densities can be used dependent on end use of product.
1. High capacity: up to 1000kg/h
2. This machine line can process 100% long length fiber up to 120mm
3. Enclosed chamer to maintain a negative pressure which can control the airflow properly.
4.Enclosed cover for proper protection and easy maintenance
Technical Parameter:
| Machine width: | 1500-8000mm |
| Needle density: | 4000-7000s/m |
| Needle frequency: | 100-700RPM for middle speed,1000-1500RPM for high speed |
| Needle stroke: | 30-60mm |
| Capacity: | 100kg/h-1000kg/h |
| Available raw material: | PP, PET, Polymide, fiberglass, Carbon fiber, Cotton, Jute, etc |
