Hydraulic Mini Excavator Sunward Swe60f 6ton 36kw Crawler Excavator with Hammer

Product Description

Product Description

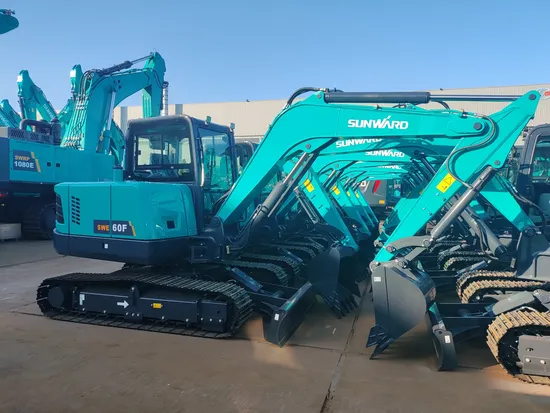

Sunward Mini Digger/ Excavator 6ton SWE60F Crawler Excavator With Lowest Price
The Sunward European design SWE60F model is an impressive 6ton zero swing mini excavator. Features include standard hydraulic hitch auxiliary piping, zero tail swing that makes those compact narrow jobs manageable. Spacious cabin with sunroof, corlor LED 7-inch touch display screen to monitor your machines performance with WIFI function. Engine maintenance is easily accessible with an open engine cover allowing access to all engine components for easier servicing. Powered by Japanese engine and hydraulics, our sunward range of mini excavators comes with a 3 year/3000HR comprehensive warranty (conditions & variations apply).
Product Parameters

utline dimension (L×W×H)			5500×1980×2550 mm
Dimension parameter	A)Wheel tread		1965mm
	B)Total length of track		2495mm
	C)Ground clearance of platform		630mm
	D)Tail swing radius		1050mm
	E)Chassis width		1960mm
	F)Track width		400mm
	G)Ground clearance of chassis		318mm
	H)Track height		594mm
	I)Total length		5498mm
	J)Cab roof height		2550mm
	K)Width of cab		1830mm
Working range	a)Max.digging height		5615mm
	b)Max. unloading height		3950mm
	c)Max. digging depth		3710mm
	d)Max. vertical digging depth		3050mm
	e)Max. digging reach		6230mm
	f)Max. digging reach on theshutdown plane		6105mm
	g)Max. blade lifting height		455mm
	h)Max. blade digging depth		415mm
	r)Min. slewing radius		2640mm
	Dozer blade (L×W)		1960×340 mm
Machine weight	Rubber track		5.63t
	Steel track		5.7t
Bucket capacity			0.18m3
Bucket digging force			46.8kN
Arm digging force			31.1kN
Max. traction			48.9kN
Boom swing angle (Left / Right)			70°/50°
Traveling speed			4.07/2.43 km/h
Gradeability			35°
Ground specific pressure			31.5kPa
Swing speed			9.4rpm
Engine	Brand		Famous Brand
	Model		V2607-DI-TE3B
	Type		4-cylinder, 4-stroke, water cooling
	Displacement		2.615L
	Power/Speed		36.5kW/2000rpm (gross)
			35kW/2000rpm (net)
Main pump	Type		2 variable plunger pumps
			1 gear pump
	Displacement		2×59+42 L/min
Pressure of main overflow valve			2×24.5+21 MPa
Capacity of fuel tank			70L
Capacity of hydraulic oil tank			70L

Detailed Photos
Company Production
SUPEREGN Industrial (Shanghai) Co., Ltd. is a leading Chinese construction machinery exporter, affiliated with SUPEREGN INDUSTRY LIMITED, located in the downtown of Shanghai City. Since our company was founded, we persistently introduce excellent Chinese construction machinery to international markets.Our strengths are as follows:(I) 16 years professional experience in international trading and rich knowledge in construction machinery & heavy equipment industry, which enable us to turn customer inquiries into final products and export them to numerous countries and regions without barriers;(II) Proactive and high educated sales team with international vision, speaking fluent multiple languages, such as English, Spanish, Portuguese, Russian, Arabic and French etc.;(III) Strong long term dealership from various top manufacturers, assuring that all our products are original brand new ones with competitive price;(IV) Excellent logistics services (by sea, air, railway or road), ensuring timely delivery of consignments all over the world;(V) Comprehensive after-sales service, including one-year warranty, spare parts supply, installment and maintenance, training and technical advice;(VI) Expertly managed ERP system and coordinated quality control system to satisfy various project requirements.SUPEREGN has passed the international quality management system of ISO9000, CE, SGS, UL and other products certification. Our export revenue increases constantly every year, and our products have already entered 168 countries across the continents of Africa, Middle East, South America, Oceania, Middle Asia, Southeast Asia, and East Europe. We sincerely hope to cooperate, develop together and build a good future with you. SUPEREGN, your genuine and professional
