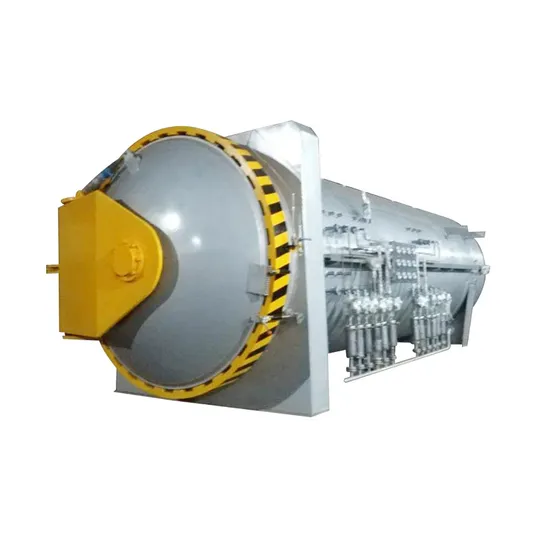

Industrial Autoclave for Rubber and Composite Material

Product Description

Industrial Autoclave for Rubber and Composite material
Product Introduction:
The composite material autoclave mainly used to the composite materials military products,space vehicle by high temperature and high pressure.It also can be applied to strengthen the carbon fiber,glass fiber,boron fiber and ect.More over,it also can change the metallic/nonmetallic joint components,such as airplane door,fairing,airborne radar and so on.
Sensitar can provide a key solution according to the specific needs of your process or equipment control for you . Engineers ,electrical engineers as well as service team in TinWing control department are experts in both the full system and the upgrading . When you purchase a TinWing control system meaning that you received a key overall solution .

1.Application scope

Composite material processing Carbon fiber, boron fiber, laminated glass,aramid fiber, glass fiber, metal composites, reinforced plastics and etc..

Widely used in aircraft, missiles, satellites and space shuttle, such as the airplane cabin door, fairing, airborne radar cover, the plane bracket, empennage.

3:Structure and configuration of autoclave

1	Autoclave body	Completely according to GB713-2008 "steel pressure vessel" standarddesign and manufacturing, pressure weld radiographic testing, 100% for equipment provides a powerful guarantee the quality and safety performance. All values are made of SUS304. The autoclave certified to ASME and CE code.
2	The head	Tooth shape and ellipsoidal head adopts integral forging flange plate, thickness is greater than the kettle body thickness.
3	The door	Adopt cylinder one way to open the door, have a unique design of walking track, can automatically set and lock. The automation of the device was improved
4	Heating element	the medium wave infrared radiation heating pipe, heating element is uniformly distributed in the kettle on both sides and bottom, to ensurethe kettle in the process of heating in the uniformity of temperature before and after, at the same time to shorten the heating time, achieved the purpose of energy saving.
5	Thermal insulation material	using high density resin rock wool to internal insulation, theinsulationperformance is superior to the traditional rock wool; The kettle insideheat loss not easily, especially in heat preservation phase, can be a very good temperature constant, guarantee the machining quality andyield of the product. Other insulation outer part with stainless steel plate and seal, in addition to increasing aesthetic, also played the anti-rust and antifouling functions.
6	Heat circulation system	inside the kettle on both sides of the layout and the kettle body blowing air inlet connection pipe, uniform processing amount blow holes on the pipeline. In the process of pneumatic compression, as a result of air pressure, blowing holes blow out air, drive the kettle inside air flow, the formation of thermal cycle within the kettle.
7	Control system	configuration of PLC system, use the color touch screen, the entire process to achieve automatic operation; In the process of work, the pressure and temperature curve display at any time, and the presence of paper recording function, can complete process curve and process parameters of record; In the process of heat booster, with pressure, such as temperature, pressure and temperature control procedures, to ensure the process curve of temperature and pressure by setting a simultaneous, in the process of constant temperature constant pressure and is equipped with automatic temperature and pressure control.
8	The safety interlock system	on the kettle body is equipped with mechanical safety interlocks, program also set chain security program; Realize the kettle with pressure can't open the door; Super WenChao pressure automatic alarm and overtemperature automatic cooling, overpressure automatic pressure relief, maximum limit to ensure the safety of the operation.

Technical parameters:

COMPOSITE AUTOCLAVE_TECHNICAL PARAMETER
No.	Description	Unit	Specifications and Parameters
1	Effective Working Diameter	mm	customized
2	Effective Working Length	mm	customized
3	Design Pressure	Mpa	1.2
4	Max. Working Pressure	Mpa	1.0
5	Max. Pressurization Rate (average)	bar/min	0.6
6	Max. Depressurization Rate (average)	bar/min	0.6
7	Safety valve exhaust	Mpa	1.15
8	Design Temperature	º C	customized
9	Max. Working Temperature	º C	customized
10	Max. Heating Rate(Air average)	º C/min	4.5
11	Max. Cooling Rate (Air average)	º C/min	4.5
12	Temperature uniformity at steady state	º C	± 2.5
13	External shell temperature at max. temperature	º C	< 60

Packing & Logistic
We usually pack our products by standard export cartons as master carton. We always choose the best and safe packaging material to make sure your orders won't be damaged during delivery.
Company Profile
Shanghai UWANTS Machinery Manufacturing Co.,Ltd.is a professional manufacture of food processing machine and pressure vessel,inculding sterilization autoclave,jacketed pot,vacuum cooling machine,modified atmosphere packaging machine,vulcanization tank,autoclave,animal waste rendering plant,feather meal production line,fish meal production line,wood processing machine etc.
We have many years' experience in this industry. We can produce the machine according to your requirement and production.Please don't hesitate to contact me if you have any question or you are interested in any of our equipment, we will offer the best service to you within 24 hours.
Welcome to visit our company at any time and thanks for visiting our website!
Our Workshop
FAQ:
1.What are the payment terms?
TT,L/C and trade assurance are acceptable,TT will be more appreciated,30% deposit before production,70% balance before shipment.
2.What is the delivery time?
At least 2 month after the deposit recipit,depend on how many machines included in the line.
3.How to pack the machine?
Standard packaging
4.How to install after the machines arriving destination?
Our engineer will go to customers site if you need,but need to pay installation fee accord with the contract.
5.What's the capacity you can do?
We always produce depend on customers' requirement.
