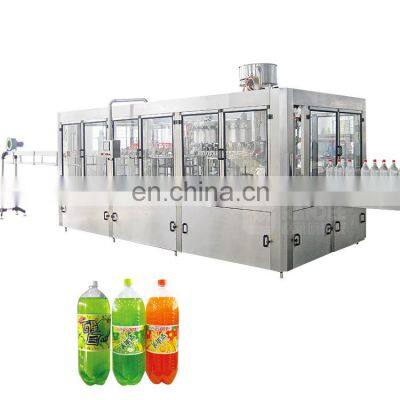

Automatic Carbonated Beverage Soft Drink Producing Bottling Filling Machine Line

Product Description

Product Description
Automatic Carbonated Beverage Soft Drink Producing Bottling Filling Machine Line Product DescriptionMain introduction:This machine has washer,filler,capper three functions in one body, automatic in total process, it is suitable for PET bottled cola ,sprint etc. It makes by high quality SUS304, key parts are precision machined by NC tool. The total machine uses advanced photoelectric detection technology to detect each part’s operation status, no bottle no filling, and no bottle no capping, automatic and easy operation. Main features:1)Using the wind sent access, with clamp hanging the bottle neck ; which can keep the bottle shape and high-speed.2)Washing bottle mouth with special designed washing manipulator,clip in the bottle neck, stable and avoid secondary pollution.3)The cylinder drives the valve, correct and reliable, high speed flow rate, high precision filling valve, CIP loop.4)Capping adopts French advanced technology, cap sorter install in a lower position, send cap in level position.5)Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON. Main machine show Flow chart Details showWashing part1.Carbonated drink filling machine food safety: 304/316 stainless steel for all components in contact with your beverage2.Washing machine running uptime: 30% reduction in changeover and maintenance downtime3.more safer, easier cleaning procedures4.Stainless steel washing pump Filling part1.304/316 stainless steel high precision filling nozzle2.Filling volume adjustable in fine tank, same liquid level afetr filling3.All 304/316 stainless stell contact parts & liquid tank, fine polish, no death corner, easy to clean4.304/316 stainless steel filling pump5.Efficient spray nozzle rinse throughly and save water for flushing Capping part1.Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping2.All 304/316 stainless steel construction3.No bottle no capping4.Automatic stop when lack of bottle5. Capping effect is stable and reliable, defective rate <=0.2% Product conveyor beltAir conveyor is fixed on the floor, with fan installed on the top. Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.Bottles are held on the neck in the conveyor and transported into filling machine by blowing power. Main technical parameter:Automatic carbonated filling machine production line packaging specificationsMaterial: SS304/316Bottle materialShapeFilling volumeFilling level(mm)Neck typePET/Glass bottleSquare/round/flat bottle100-2250mlAccording request±1mmAs requiredAdjustable specificationsBottle size: bottle diameter≤110mm, bottle height≤340mmIf using square bottles, then bottle separating system will be addedFilling temperature2℃-40℃level control: float ball and pneumatic butterfly valve.Bottle labeling typePacking system Min, Spec.Palletizing systemManual/ automaticHot melt roll-fedPVC shrink labelFull label/half labelFilm shrink packingRobert packingCarton packing2*3 2*4 3*43*5 4*4 4*5 4*6 6-30bags/minLow positionGantry palletizerRobot palletizerUser Ambient ConditionsTemperature: 2-40℃, Humidity: no dewBottle feed-inConveyor with screw for glass bottleAdopt air-conveyor for PET bottleRelated product Blowing Machine with different options:1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities.2. Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle.Carbonation drink mixerProcess: Water, syrup, CO2 mixing systemCarbonation mixer: 1500L/Hr, 2000L/Hr,3000L/Hr,5000L/Hr,etc. Co2 content is from 2.0-3.8Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree Soda water mixing systemProcess: Sugar melting boiler or High level cutting tank, double filters, syrup pump, blending tank, stroage tank Syrup melting boiler: 300L/Hr, 500L/Hr, 1000L/Hr,etc,Blending tank: 1000L/Hr, 2000L/Hr, 3000L/Hr, etc, Storage tank: 1000L/Hr, 2000L/Hr, 3000L/Hr,etc. Automatic sticky / wet glue labeling machineLabeling speed: 60~100B/MinLabeling precision: +1mmBottle size Height : 40mm~~250mm Diameter:20mm~~110mm(customized)Label size:Height :10mm~~150mm Length :15~~300mm(customized)Inner diameter of scroll :Φ76mmOuter diameter of scroll:Φ300(Max)Company InformationProject casesOur exhibitionOur teamFAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare pats?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
