US$3,980.00-13,880.00
|
1 Set
(MOQ)
|
Basic Info.
Application
Liquid with Suspended Solids, Viscous Fluid, Liquid
Application Area
Chemical, Food
Certification
CE, ISO, GOST, SONCAP, CCC, API
Heating Method
Steam Heating or Electric Heating
Main Material
Stainless Steel
Warranty
1year, Offer Technology Support Over 10years
Functions
Mixer, Heating and Cooling, Homogenizer, Weighting
Voltage
110/220/380/415V 3phase
Automatic Grade
1 - 65 r.p.m
Discharge Finished Products
Automatic or Manual
Material
SUS316L and SUS304
Detergent Cleaner Homogenizer Mixer
Making Tank Machine Manufacture
Liquid Soap Mixing Tank
Homogenizer Mixer
Liquid Washing Heating Mixing Tank
PLC & Button Control
Homogenizer Speed
Equipment with Heater
Variable Speed Mixer
High Efficency
Key Selling Points
Easy to Operate
Lift System Mixer
Water Cooling Homogenizer
High Viscosity Vacuum Mixer
Support Custom
Operating type
Continuous Operating
Transport Package
Packing by Wooden Case
Specification
90*90*160cm
Production Capacity
1000PCS/Year
Product Description
Product Description Scmixer agitator paint mixing machine mezclador de pintura de alta velocidad Customized mixer from 50L to 10,000L ,Fast Delivery.
20 years of manufacturing experience.
Contact Us For The Offer!

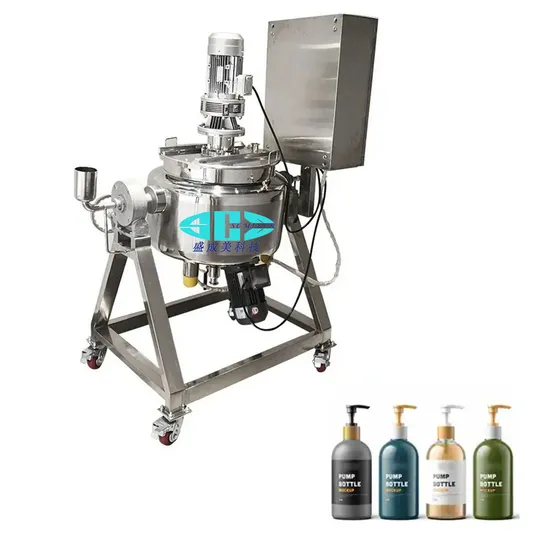

The company produced liquid homogenizer mixer is mainly applied to the liquid detergent (such as detergent, shampoo, shower gel, etc.) product configuration, Mixer set stirring, dispersing, heating, cooling, pump the material, defoaming (optional) and other functions in one, is the current domestic and foreign manufacturers Configure the ideal equipment for washing
Principle Features (1)A full range of scraping wall stirring frequency converter speed, according to customer requirements of different production of high-quality products; (2)A variety of high-speed homogenizer, strong mixing of solid and liquid in the lotion production can quickly dissolve AES, AESA, LSA, Such as insoluble materials, saving energy consumption, greatly reducing the production cycle; (3)The pot body is made of three layers of stainless steel imported welding composition, the tank body and its passage are mirror polished, fully in line with GMP requirements; (4)According to process requirements, the tank can be heated and cooled materials, heating methods are mainly steam and electric heating two;Discharge convenient, can be directly discharged, but also configure the pump discharge.
Detail pictures
Technical parameter
Type | Workingcapacity | Agitator | Homogenizer(choose) | Heating mode |
| | Mixing power (kw) | mixing speed (r/min) | Homogenizer power(kw) | Homogenizer speed (r/min) | |
SLM-200 | 200 | 0.75 | 0-65 | 2.2-4 | 3000 | Steam or electric heating |
SLM-300 | 300 | 0.75 | 0-65 | 2.2-4 | 3000 | Steam or electric heating |
SLM-500 | 500 | 2.2 | 0-65 | 5.5-7.5 | 3000 | Steam or electric heating |
SLM-1000 | 1000 | 4 | 0-65 | 7.5-11 | 3000 | Steam or electric heating |
SLM-2000 | 2000 | 5.5 | 0-53 | 11-15 | 3000 | Steam or electric heating |
SLM-3000 | 3000 | 7.5 | 0-53 | 18 | 3000 | Steam or electric heating |
SLM-5000 | 5000 | 11 | 0-42 | 22 | 3000 | Steam or electric heating |
Application field
1.Cosmetic and daily chemical product: Cosmetic cream, lotion, shampoo, detergent, health care product, gel, Laundry detergent, hand sanitizer, armpits lotion etc.
2.Pharmaceutical product: Ointment, Ice packs, injection liquid, penicillin etc.
3.Food : Salad, mayonnaise, peanut butter, sesame butter, buttery, Animal fat, iced products, healthy food etc.
4. Beverage: Fruit Juice, Milk Juice etc.
5.Chemical: Paints, Pigments, dyes, photo solvents, Rubber and resin, pesticides ,Shoe polish, general chemicals etc. Warmly welcome to vist our company and machines .Welcome to learn more information about machines (picture ,video and specification ).(Turn-key project )
Company display
Showroom display
Engineering cases
Certifications
Shipping and packing
FAQ: 1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger
(Whatsapp/phone,We Chat). 2.How long can I get feedback after enquiry?
We will reply you within 2hrs. 3.What is the package?
Machines will be packed by plywood case. Our Service: Pre-sales service: 1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service: 1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
