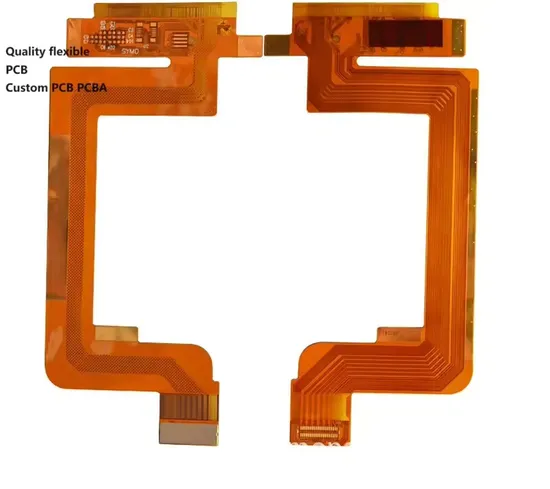

Flexible PCB Board FPCB Assembly Manufacturer Printed Circuit Board for Drones Applications
Basic Info.
Model NO.
Dr001
Combination Mode
Adhesive Flexible Plate
Application
Digital Products, Computer with LCD Screen, Mobile Phone, Aviation and Aerospace
Conductive Adhesive
Conductive Silver Paste
Flame Retardant Properties
V1
Processing Technology
Electrolytic Foil
Base Material
Pi
Transport Package
15X10X20 Cm
Trademark
Newtrue
Origin
Made in China
Production Capacity
50000squre Meters
Product Description
Industry-specific attributes| Base Material | 2/1polyimide |
| Board Thickness | 0.2-6mm |
| Board Size | Customization |
| Model Number | Dr001 |
| Type | FPC |
| Place of Origin | Guangdong ,China |
| Brand Name | Customization |
| Copper Thickness | 0.4-2mil(10-50um) |
| Min. Hole Size | 0.1mm(4mil)for HDI / 0.15mm(6mil) |
| Min. Line Width | 0.075mm/0.075mm(3mil/3mil) |
| Min. Line Spacing | 0.003'' |
| Surface Finishing | HASL/OSP/Ag/ENIG/ENEPIG/Immersion silver/Tin |
| Keywords | unmanned aerial vehicle |
| Application products | Communication Field |
| Supply Type | PCB factory |
| Process parameters | |
| Number of layers of soft board | 1~8 |
| Maximum processing area | 1900mm*250mm |
| The thickness of the finished product of the processed plate | 0.036mm~2.4mm |
| Wire copper foil thickness | 9μm~70μm (1/4oz~2oz) |
| Minimum hole diameter | ≥4mil (0.1mm) |
| Minimum line width/line spacing | 1.8mil/1.8mil(0.045mm/0.045mm) |
| Surface treatment process | chemical immersion gold, OSP, electroless nickel gold plating, electroplating nickel gold plating |
| Reinforcement fit tolerance ±0.2 | ±0.2 |
| Shape tolerance: steel mold tolerance | ±0.1mm |
| precision mold tolerance | ±0.05mm |
| Impedance tolerance ±10% | ±10% |
| Capacity | |
| Single Layer | 3500 square meters/month |
| Ordinary (impedance) double Layer | 14000 square meters/month |
| 3-4 layer soft board | 1500 square meters/month |
| 5-6 layer soft board | 1300 square meters/month |
| 7-8 layers soft board | 1000 square meters/month |
| Sample delivery time | |
| Single Layer | 2-3days |
| Ordinary (impedance) double Layer | 3-4days |
| 3-4 layer soft board | 7-9days |
| 5-6 layer soft board | 9-12days |
| 7-8 layers soft board | 12-15days |
| The first mass production delivery time | |
| Single Layer | 6days |
| Ordinary (impedance) double Layer | 7days |
| 3-4 layer soft board | 12days |
| 5-6 layer soft board | 14days |
| 7-8 layers soft board | 15days |
