Single-Girder Crane Type 6.3ton Electric Wire Rope Hoist for Workshop or Warehouse

Product Description

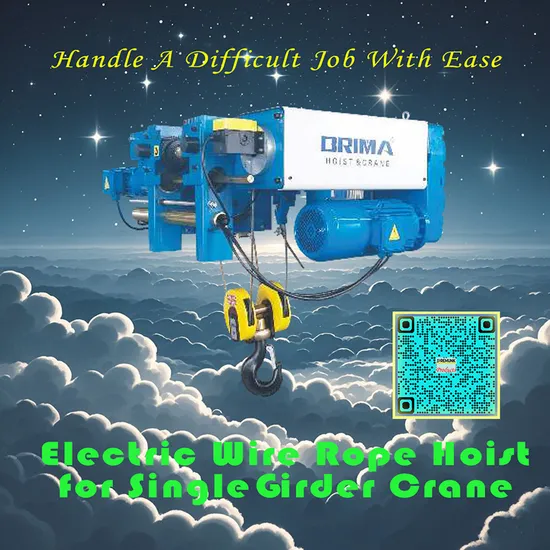

European-style Electric Wire Rope Hoist For Single-girder Crane
Product Description

Structural components
Drum:Used for winding wire rope and realizing the take-up and pay-off of wire rope through rotation.

Wire rope: It is the main bearing component of the hoist and is made by twisting multiple strands of steel wire.
Hook: Used for hanging heavy objects.
Motor and Reducer: The motor provides power. Through the reducer, the high-speed rotating motor output is converted into low-speed and high-torque output to meet the lifting and running requirements of the hoist.
Brake: Used to lock the drum when it stops running to prevent heavy objects from sliding down.
Working principle The wire rope hoist for single-girder crane is driven by a motor to drive the reducer. The reducer drives the drum to rotate, thereby realizing the take-up and pay-off of the wire rope. When the wire rope is wound on the drum, the hook rises; when the wire rope is released from the drum, the hook descends. During the lifting and descending process, the brake can brake the drum at any time to ensure the safety of heavy objects.
Application scenarios
Industrial plant:In industrial plants, wire rope hoists are often used to lift heavy objects such as raw materials, semi-finished products and finished products.
Warehouse: In warehouses, wire rope hoists can be used for loading and unloading goods, stacking goods and other operations. It can improve the logistics efficiency of warehouses and reduce labor intensity.
Construction site: On construction sites, wire rope hoists can be used to lift construction materials, equipment and other heavy objects. It can be installed on large lifting equipment such as tower cranes and gantry cranes, or used alone, with the advantages of strong adaptability, safety and reliability.
Advantages
Large lifting capacity: The wire rope hoist choose different lifting capacities according to different needs. The maximum lifting capacity can reach dozens of tons or even hundreds of tons.
High work efficiency: The wire rope hoist is driven by a motor and has a relatively high lifting speed and running speed, which can greatly improve work efficiency.
Simple operation: The operation of the wire rope hoist is very simple. Lifting, descending and running operations can be realized only through buttons or remote controls.
Safe and reliable: The wire rope hoist has perfect safety protection devices such as overload protection, limit protection and brake, which can ensure the safety of heavy objects.

Detailed Photos
Product Parameters

Hoist Capacity	Model	Lifting Height	Lifting Speed	Travelling Speed	Lifting Grade
3.2ton	BMG3.2	6/9/12/15/18m	5/0.8m/min	5/20m/min	2M/M5
5ton	BMG5	6/9/12/15/18m	5/0.8m/min	5/20m/min	2M/M5
6.3ton	BMG6.3	6/9/12/15/18m	5/0.8m/min	5/20m/min	1M/M4
8ton	BMG8	6/9/12/15/18m	5/0.8m/min	5/20m/min	2M/M5
10ton	BMG10	6/9/12/15/18m	5/0.8m/min	5/20m/min	2M/M5
12.5ton	BMG12.5	6/9/12/15/18m	4/0.6m/min	5/20m/min	2M/M5

If there is a demand, please inform us of the following data. We will select a suitable model for you according to the actual working conditions.

Lifting Weight kg
Lifting Height m
Lifting Speed m/min	Are there any special requirements?
Voltage v
Other Requirements
Hoist Type	Single-girder/Double-girder

Other Products
Company Profile
Office Scenarios

Workshop
Inventory of hoists
Certifications

FAQ
Q 1:What type of company are you?
We are the brand owner of multiple series of cranes, and our brand is Premunk. We also act as an agent for hoists of other brands, such as Konecranes, Dmg and Brima. In addition, we can provide OEM/ODM manufacturing services for our clients. Clients of all kinds are welcomed to come for business negotiations.
Q 2: What trade terms and currencies can you accept?
We normally trade with our clients in EX-Works, FOB, CFR and CIF.We quote prices in Chinese Yuan or US dollars.
Q 3: How about the lead time?
Within 10 to 45 working days after receiving the advance payment.
Q 4: How about the transportation?
We will suggest you the best shipment method according to your goods dimensions and weight. It also depends on clients' decisions. We will try our best to serve you.Suzhou, where our company is located, is close to Shanghai. Therefore, we usually use the port of Shanghai to export goods.
Q 5: Are you responsible for equipment installation?
Regarding installation, the installation service fee is not included in our quotation. We will provide installation instructions to help customers install the equipment by themselves. If customers need us to send technicians to conduct the installation service, we will charge an additional installation fee.
Q 6:What are your after-sales services?
We offer a one-year quality guarantee for our products. If there are any quality problems with the products themselves within one year after shipment, we will provide replacement parts for you as soon as possible. After one year, we will provide paid spare parts for the entire life cycle of the products.
