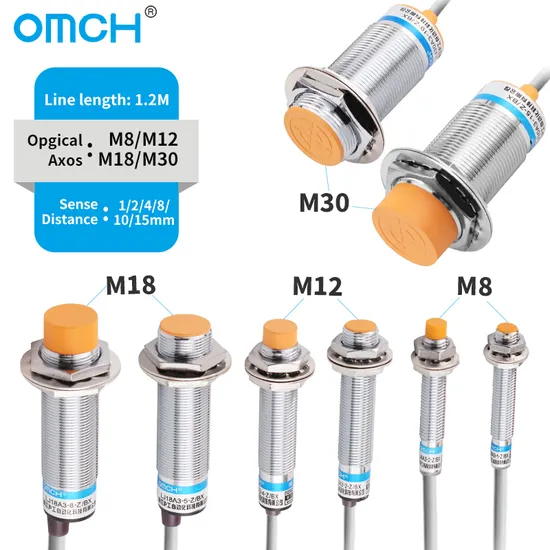

Omch Inductive Proximity Switch Lj12A3-4-Z/Bx Series 8~30mm Detection Distance
Basic Info.
Model NO.
LJ Series
Wires
PNP (Three-Wires)
Standard
Standard
Application
Industrial Automation
Size
Cylinder
Certification
ISO, CE
Inductor
Metal
Probe Material
ABS
Transport Package
Sacks/Bosx
Trademark
OMCH
Origin
Zhejiang, China (Mainland)
HS Code
9031809090
Production Capacity
100000 Piece/Pieces Per Year
Packaging & Delivery
Package Size
23.30cm * 15.10cm * 5.40cm
Package Gross Weight
0.194kg
Product Description
Product Parameters| Mode | LJ series |
| Dimension | M8,M12,M18,M30 |
| Installation Method | Flush type,Non flush type |
| Type | DC/AC ,PNP/NPN,NOINC,NO+NC |
| Detection Distance | 1~15mm±10% |
| Standard Test Object | lron 8*8*1mm,lron 12*12*1mm,lron 18*18*1mm,lron 30*30*1mm |
| Response Frequency | DC:0.5KHz AC:25Hz |
| Lagging distance | Less than 10% of the detection distance |
| Detecting object | magnetic metal (detection distance decreases when non-magnetic metal is detected) |
| Power supply voltage | DC type:DC12-24V(6-36V)pulsation (P-P)10% or less, and Ac type:AC110-220V(36-250V)50/60HZ |
| Current consumption | N.P type: below 13mA, D type: below 0.8mA, A type: below 1.7mA. |
| Control output | N.P type: 300mA or less, D type: 200mA or less, A type: 400mA or less |
| Loop protection | N .P.D type. reverse connection protection, surge absorption, load short circuit protection, A type: surgeabsorption environment. |
| Temperature,humidity | when operating, when storing: -30-+650C each(no ice, no condensation), action, storage: each 35 ~95%RH |
| Insulation impedance | more than 50MQ (DC500 megohm meter) between the charging part and the outer shell |
| Withstanding voltage | AC1000V 50/60Hz1min between the charging part and the shell |
| Temperature effects | temperature range -30 ~ +65ºC, +23 ºC, +15% of the detection distance, the temperature range -25 ~ +60ºC,+23 ºC, +10% of the detection distance |
| Influence of voltage | Within +15% of the rated supply voltage range, within +10% of the detection distance at the rated supplyvoltage value. |
| Protection structure | IP67 (lEC standard) |
| Material | (Housing: Nickel plated brass)(Detection surface: ABS) |
Production Pictures
Packing&Shipping
FAQ Q : What is the MOQ?A : 1pcs.Q : Can I get a lower price if I order large quantities?A : Yes, Cheaper prices with bigger size orders.Q : Can I get a sample?A : Of course, but you need to pay the minimum sample fee plus transport cost.Q : When will you ship my order?A : 3 day shipping guarantee for stock item and 3-4 weeks for non-stock items.
