Waste Plastic PE PP Film Yarn Recycling Washing Drying Squeezing Machine

Product Description

The PE PP Film Extruder Dryer Dewater Machine is expertly engineered primarily for the efficient drying of films, offering an unparalleled performance.
Working Principle and Application
Utilizing advanced screw pressure technology, this machine effectively extracts moisture from materials. It's perfect for handling washed plastic films, agricultural films, PP woven bags, large packing bags, PE farm films, ton bags, nylon, and more. The specially designed screw and gearbox ensure exceptional drying, significantly boosting capacity when used for pelletizing or granulation. Achieving an astounding dewatering efficiency of 95%-99.5%, this machine meets customer-specific requirements for materials that can be plastized or semi-plastized.
Advantages of This Machine
1. Ingeniously designed screw and pressure system facilitate superior drying compared to conventional machines.
2. Exceptional dewatering capability: Achieving up to 98% efficiency.
3. Technologically advanced with low power consumption, minimal noise, user-friendly operation, and competitively priced.
4. Compared to hot air dryer systems, this mechanical pressure dewatering machine saves both space and energy.
Detailed Parameters:

Item NO.	Item name	Quantity	Power
1	Belt conveyer	1 set	2.2kW
2	Main machine	1set	110kw
3	Pelletizing	1 set	5.5kw
4	Wind transmission system	1 set	5.5kw
5	Storage Silo	1 set	_
6	Electrical control box	1 set	_

Photographs of the Machine

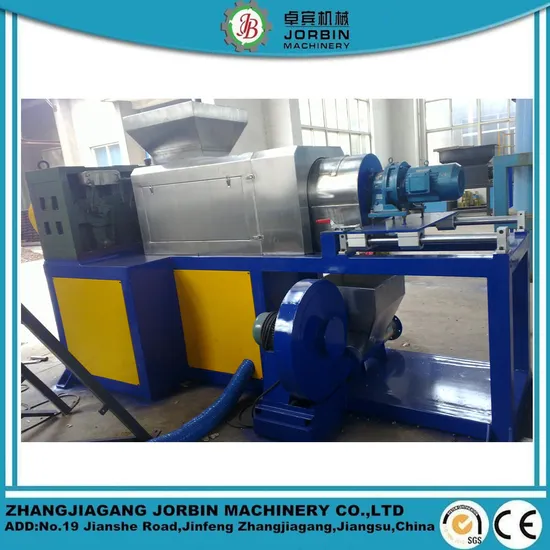

Machine Currently in Production
Screw and Barrel of the Machine
Die of the Machine
Complete Machine Line
Project Summary:

NO.	Item.	Spec.
1	Material	washed PP ,PE film
2	Capacity	output::800-1000kg/hr
3	Electricity power	400V,50Hz,3 Phase
4	Finally products moisture	≤2%
5	Installed power	250KW for whole plant
6	Power consumption	70% of installed power
7	Plant area	> 36 Square meter > 3 meter height Estimate line size: 6m(Length)* 2 m(Width)* 3 m(Height) we can make the line turn as I or L shape to fit the buyer's plant
8	Manpower	1-2 Persons required
9	Payment terms	30% by TT as deposit; Balance paid by TT before shipment.
	Delivery time	40 Working days since receive the deposit
	Package	Packing by film.
	Warranty Period	12months since the date of BL.
	Shipping	By sea
	Offer validity	60Days

Please feel free to reach out for more detailed information about this innovative machine. 1. The following crucial documents are included with the machine:
Machine Layout Electrical Diagram Machine Certification Comprehensive Manual Book/Maintenance Guide 2. We offer a one-year quality guarantee. During this period, should any malfunctions be attributed to us, we commit to dispatching replacement parts via DHL or an equivalent service within 7 working days of a complaint. Additionally, our technicians are available to visit your factory for maintenance, with all costs covered by us.
3. Post one-year guarantee, we offer reasonably priced spare parts and on-site technician maintenance services. Any necessary replacements will be shipped as swiftly as possible.
4. We trust our quotation aligns with your expectations and are eager to provide further information at your convenience.
5. 24/7 Customer Support Available: Contact us at Cell +86-13915707468 for any inquiries or assistance.
