Construction Manual Lifting Steel Chain Hoist / Manual Chain Block a Type
| Negotiable | 10 Pieces (MOQ) |
Basic Info.
Model NO.
HSZ-A
Type
Chain Hoist
Sling Type
Chain
Lift Speed
2~8m/min
Maximum Lifting Height
3m
Chain Falls
1-38
Certification
CE, ISO9001:2000
Condition
New
Color
Orange
Transport Package
Carton
Specification
0.5-100 Ton
Trademark
DESO
Origin
China Mainland
HS Code
84251900
Production Capacity
1000PCS Per Month
Product Description

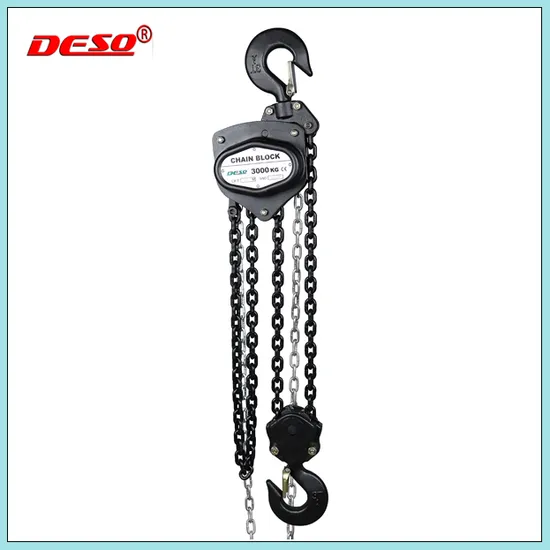

Chain Block / Chain Hoist (A type)* Compact design, low headroom
* High precision gears
* High endurance roller on load sprocket
* Double pawl brake system
* Engineering-optimized hand chain wheel, preventing hand chain stuck in Fast Operation
* High precision load chain guide
* Quenched and tempered high tensile G80 load chain and hooks
* Smooth surface with powder coated preventing rust
* Individual serial No. for each set, wheel cover with DESO logo and WLL embossed.
| Product | Chain block (A type) | |
| Material | Gear | |
| Hook | ||
| Chain | ||
| Capacity | 0.5t~100t | |
| Feature | * High efficiency, small pulling effort and easy maintenance * Overload limiter protects hoist mechanism is available * Wet friction discs with longer life * Wider opening hook of easier handling shape * Forged upper and bottom hooks with forged steel safety latches * Double pawls supporting fail-safe brake mechanism for secure operations | |
| Delivery Time | 20~40 days, based on Qty | |
| Packing | Carton / Wooden case / Wooden case + Pallets as required | |
| Application | Widely used in the dock, logistics operations, factory warehouses, construction and modern production lines | |
| Capacity (T) | Lift (M) | Test Load (kN) | Pull to lift rated load (N) | Strands of load chain | Load chain dia.(mm) | Dimension | Net weight (kg) | Extra weight of one m lift (kg) | Packing size (cm) | |||
| A | B | C | D | |||||||||
| 0.5 | 2.5 | 6.3 | 231 | 1 | 6 | 115 | 136 | 270 | 25 | 7 | 1.5 | 20*16*19 |
| 1 | 2.5 | 12.5 | 309 | 1 | 6 | 143 | 156 | 317 | 27 | 10.5 | 1.8 | 23*18*20 |
| 1.5 | 2.5 | 18.8 | 320 | 1 | 7.1 | 148 | 182 | 399 | 34 | 17 | 2.1 | 27*22*22 |
| 2 | 3 | 25 | 320 | 1 | 8 | 152 | 198 | 414 | 36 | 18 | 2.3 | 27*22*22 |
| 3 | 3 | 37.5 | 360 | 2 | 7.1/8 | 148 | 182 | 465 | 38 | 21/22 | 3.1/3.8 | 31*23*21 |
| 3 | 3 | 37.5 | 414 | 1 | 10 | 181 | 266 | 636 | 48 | 32 | 3.2 | 40*25*24 |
| 5 | 3 | 62.5 | 414 | 2 | 9/10 | 181 | 266 | 636 | 48 | 38/40 | 4.6/5.4 | 42*28*24 |
| 7.5 | 3 | 94 | 420 | 3 | 10 | 181 | 365 | 798 | 57 | 52 | 7.3 | 50*49*28 |
| 10 | 3 | 125 | 420 | 4 | 10 | 181 | 365 | 798 | 57 | 70 | 9.8 | 54*49*28 |
| 12 | 3 | 150 | 420 | 4 | 10 | 181 | 365 | 798 | 57 | 80 | 9.8 | 54*49*28 |
| 15 | 3 | 187.5 | 430 | 6 | 10 | 181 | 485 | 920 | 84 | 125 | 14.2 | 78*72*34 |
| 20 | 3 | 250 | 420*2 | 8 | 10 | 192 | 630 | 890 | 84 | 162 | 19.6 | 78*72*34 |
| 30 | 3 | 375 | 450*2 | 12 | 10 | 330 | 670 | 1000 | 84 | 228 | 28.3 | 88*78*42 |
| 50 | 3 | 625 | 450*2 | 22 | 10 | 410 | 900 | 1950 | 130 | 1085 | 50 | 160*130*75 |
| 75 | 3 | 937 | 450*2 | 30 | 10 | 570 | 900 | 2100 | 160 | 1600 | 68 | 160*130*75 |
| 100 | 3 | 1250 | 450*2 | 38 | 10 | 675 | 900 | 2300 | 180 | 1800 | 87 | 180*150*90 |
Fair
Rated Products
If you need more details and have any questions, please feel free to contact us, we are more than pleased to do any help. Thanks!
