Testo 550s Basic Kit Smart Digital Manifold Gauge 0564 5501 with Fixed Cable Clamp Temperature Probes

Product Description

Testo 550s Basic Kit Smart Digital manifold gauge 0564 5501 With
Fixed Cable Clamp Temperature Probes Features

All results at a glance thanks to the large graphic display

Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class

Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements
via automatic Bluetooth® connection, testo Smart App for documentation and lots more

In the kit: testo 550s smart digital manifold with Bluetooth and 2-way valve block, 2 x clamp temperature probes (fixed cable, NTC), case
Product Description
Easier, more flexible measurements and documentation: With the testo 550s digital manifold with Bluetooth and 2-way valve block, you'll be ideally equipped for your measuring tasks in the field of commissioning, servicing and maintenance of refrigeration and air conditioning systems and heat pumps.

testo 550s - Smart digital manifold with Bluetooth and 2-way valve block 1)For exceptionally fast measurements on refrigeration and air conditioning systems and heat pumps
2)Large graphic display for easy evaluation of measurement results
3)Stored programs guide you through the measurement and make it possible to automatically determine key system parameters such as superheating, pressure drop test or evacuation
4)Straightforward to handle, with maximum flexibility for your application: Bluetooth probes for temperature, pressure and humidity connect to the manifold automatically
5)testo Smart App: Create digital documentation straight away on site, set your own favourites, always have the latest refrigerants thanks to automatic updates
6)Continuously high performance in all conditions: You can depend on this manifold from Testo - it combines proven Testo quality with excellent robustness Delivery ScopeAre you interested in this measuring instrument? Testo has put together practical kits for you - so you'll be optimally equipped to tackle your measuring tasks right away. Technical Data Temperature

Measuring range	-50 to +150 °C
Accuracy	±0.5 °C
Resolution	0.1 °C
Probe connection	2 x plug-in (NTC)

Pressure measurement

Measuring range	-1 to 60 bar
Accuracy	±0.5 % fs
Resolution	0.01 bar
Probe connection	3 x 7/16" - UNF
Overload rel. (high pressure)	65 bar

General technical data

Weight	826 g
Dimensions	210 x 121 x 60 mm (LxWxH)
Operating temperature	-20 to +50 °C
Protection class	IP54
System requirements	requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	Black
Auto-off	10 min*
Battery type	4 x type AA batteries
Battery life	250 h with no illumination, no Bluetooth®; 100 h with illumination and Bluetooth®
Data transfer	Bluetooth®
Radio range	150 m
Refrigerants in instrument	R407H; R23; R290; R1234yf; R442A; R134a; R123; R452B; R438A; R421A; R453a; R401B; R1233zd; R410A; R407A; R407C; R452A; R401A; R422C; R427A; R422B; R424A; R125; R414B; R404A; R408A; R448A; R422D; R12; R114; R421B; R449A; R409A; R420A; R444B; R32; R454A; R124; R402A; R450A; R407F; R416A; R13; R437A; R1234ze; R454B; R402B; R22; R434A; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H2O); R744 (CO2)
Refrigerants update via App	R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; R411A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
Storage temperature	-20 to +60 °C

* when not connected via Bluetooth

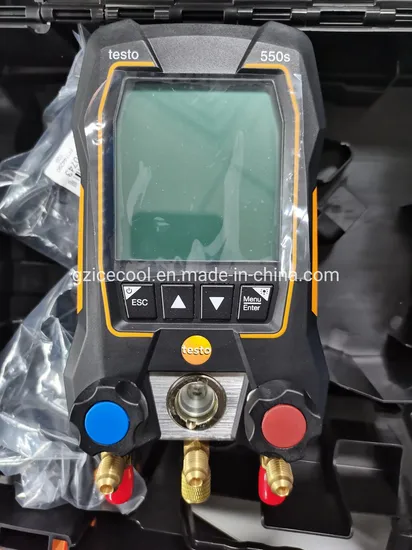

Product photo
Other Testo products we can provide:

	Testo549/Testo550/Testo557 Digital Manifold Gauge Parameter
Model	Testo549	Testo550	Testo557
Difference	Basic type	Wireless Bluetooth + wireless APP	Wireless Bluetooth + wireless APP High-precision vacuum measurement and 4-way manifold
Vacuum measurement range	-1 bar ~ 0 bar	-1 bar ~ 0 bar	0 ~ 20000 micron
Pressure measurement range	-50~+150°	-50~+150°	-50~+150°
Overload rel. (high pressure)	65 bar	65 bar	65 bar
Probe connection	2 x plug-in (NTC)	2 x plug-in (NTC)	2 x plug-in (NTC)
Accuracy	±0.5 % fs	±0.5 % fs	±0.5 % fs
Product configuration	testo 549 digital 2-way manifold +batteries +calibration protocol	testo 550 digital 2-way manifold + two clamp temperature probes + batteries +calibration protocol +transport case	testo 557 digital 4-way manifold + two clamp temperature probes +precise external Pirani gauge for vacuum measurement + batteries +calibration protocol +transport case
