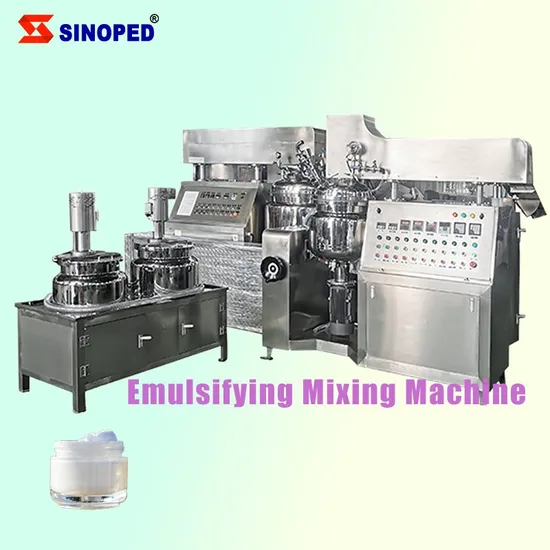

Cosmetics Food Emulsifying Mixer Vacuum Homogenizing Emulsifying Mixing Machine

Product Description

Cosmetic Liquid Soap Homogenizer Mixer Movable High Shear Vacuum Emulsifier Mixer Product Description
Product Parameters

Main tank		Water and oil tank
Name	100L emulsifying mixer (Main Tank)	Name	100L Water Tank
Capacity	Designed capacity: 125L	Capacity	Designed capacity: 60L Working capacity: 50L
	Working capacity:100L	Mixing way	Disperser
	Min working capacity: 30L	Power	0.55KW
Material	Contact material:304L thickness:4mm	Speed	1400rpm
	Body: 304L thickness :3mm	Name	100L Oil Tank
	Body: 304L thickness:3mm	Capacity	Designed capacity: 50L Working capacity: 40L
Working life	More than 10 years	Mix way	Disperser
Mixing way	Frame type scraping/mixing and fixed oar	Power	0.55KW
Homogenizing way	Upper	Speed	1400rpm
Homogenizing power	3KW	Cover opening way	Active way
Homogenizing speed	2850 rpm	Temperature display	Numeral
Granule size	0.2-0.6um	Material feeding way	Upper feeding
Lid open way	(hydraulic system is optional)	Material	Contact material:304L thickness:4mm
Heating way	Electric heating (steam heating is optional)		Body: 304L thickness:2mm
Material feeding way	Tilt and low valve

Detailed Photos
Feature 1.Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. It uses advanced German technology, with unique structure. The material moves of high-speed in the multi-gap between the rotor and the stator, which forms a strong hydraulic shearing. During few production, it can exert homogenizing effect fully.
2.Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing.
3.Customer can choose frequency conversion timing homogenizer and highest rotate speed is 2900 r/min.
4.The oil tank and water tanks are equipped with rating stirring dispersion device 0.55KW, so that oil and water could be
heated more quickly and evenly.
5.The lid is with a light observation hole, which can keep control of the material emulsification situation in the kettle. There is a small material entrance, which is convenient to add special essence into the kettle.
6.Bottom material discharging is easy to operate. The finished materials can be directly moved into the filling and packing system.
The materials can also be dumped out, which is easy to clean. Product Application
Vacuum emulsifying machine is an ideal option to produce high-grade skin care products, pharmacy ointment, and many other kinds of creams which need to be very soft and smooth. It has the functions of heating, mixing, scraping, rotating at different speeds and vacuum supply. It has a very wide application from cosmetics (skin cream, hair gel, lotion etc) and food (jam, chocolate,sauces etc.) to pharmacy (ointment, syrup, paste) and chemicals(painting, adhesives, detergents).The machine is mainly made up of oil tank, water tank, vacuum homogeneous tank (main tank), heating system, mixing system, vacuum system, electric lifting system, operation control cabinet and piping system
