Oriemac Construction Machinery 2m Width Asphalt Cold Milling Machine Xm200 for Sale

Product Description

Oriemac Construction Machinery 2m Width Asphalt Cold Milling Machine Xm200 for Sale
Speicification:
ORIEMAC Cold Milling Machine(XM200)
1. Max. Milling width---2000mm
2. Max. Milling depth---320mm
3. Rated power---447kw
Introduction of ORIEMAC Cold Milling Machine(XM200):
Feature:
ORIEMAC Cold Milling Machine(XM200) is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. Cement road surface roughening and dislocation smothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.
Features of ORIEMAC Cold Milling Machine(XM200):
(1) Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency.
(2) Compact three-wheeled machine with front-wheel drive. The advance speed is infinitely variable in both gear which can be suitable for the requirement of different working conditions.
(3) The front steering driving axie has large steering angle and small turming radius, can mill along the manhole covers.
(4) The high-strength and high wear resistance imported cutter head and cutter rest have long service life and low construction cost.
(5) The imported hydraulic elements have high working reliability.
(6) Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.
(7) Handheld breakers and rumble strip equipment can be selected.
Parameter: Model XM200

	Max. milling with	mm	2000
	Max. milling depth	mm	320
Milling wheel	Number of tools		168
	Drum diameter with tools	mm	980
Engine	Model		QSX15
	Rated power	kW	447
	Rated speed	rpm	2100
Specifications	Operating speed	m/min	0~30
	Travel speed	km/h	0~5
	Gradeability	%	80
	Ground clearance	mm	≤300
	Operating weight	kg	32500
Volume	Fuel tank	L	1300
	Hydraulic oil tank	L	400
	Water tank	L	3400
Conveyor	Width	mm	800
Measurement	Overall machinery LxWxH	mm	7130×2500×3000
	Conveyor LxWxH	mm	8000×1150×900
Travel mode			Track

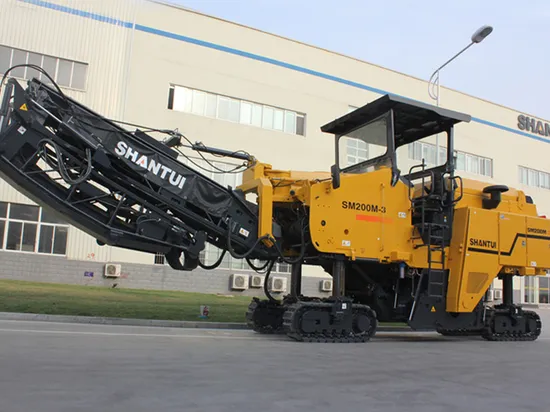

Photo Show:
