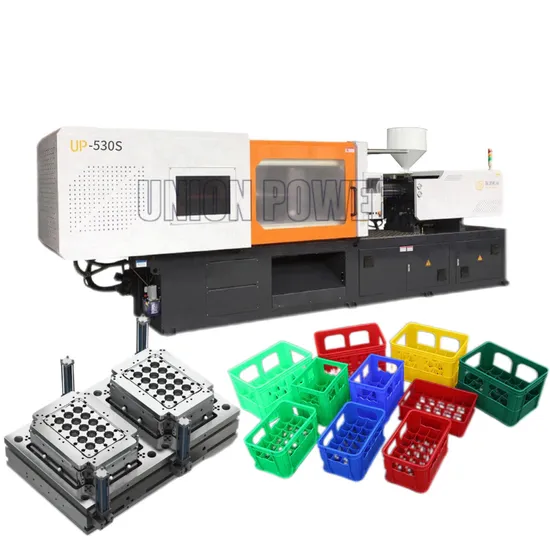

High Performance up-530 Beer Box Injection Molding Machine with 1000L Tank Volume
| US$65,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
UP-530
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Machine Weight
21t
Heating Power
31.5kw
Tank Volume
1000L
System Pressure
16MPa
Transport Package
Film Packing
Specification
8.4*2*2.76
Trademark
UP
Origin
China
HS Code
8474809090
Production Capacity
500sets Per Year
Packaging & Delivery
Package Size
840.00cm * 200.00cm * 276.00cm
Package Gross Weight
21000.000kg
Product Description
OverviewProduct Parameters
| Technical Parameters | Model UP-530T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 80 | 85 | 90 |
| Shot Volume (cm3) | 2135 | 2410 | 2702 |
| Injection weight (g) | 1943 | 2194 | 2495 |
| injection pressure (Mpa) | 168 | 148 | 132 |
| Screw speed (rmp) | 230 | ||
| Clamping Unit | |||
| Clamping force (KN) | 5200 | ||
| Open stroke (mm) | 850 | ||
| Max Mold height (mm) | 810 | ||
| Min Mold height (mm) | 330 | ||
| Space between tie bars(mm) | 830x830 | ||
| Ejector force (KN) | 150 | ||
| Ejector stroke (mm) | 240 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 45(63) | ||
| Heating power (KW) | 31.5 | ||
| Machine dimension (M) | 8.4x2x2.76 | ||
| Machine weight (T) | 21 | ||
| Oiltank cubage (L) | 1000 | ||
