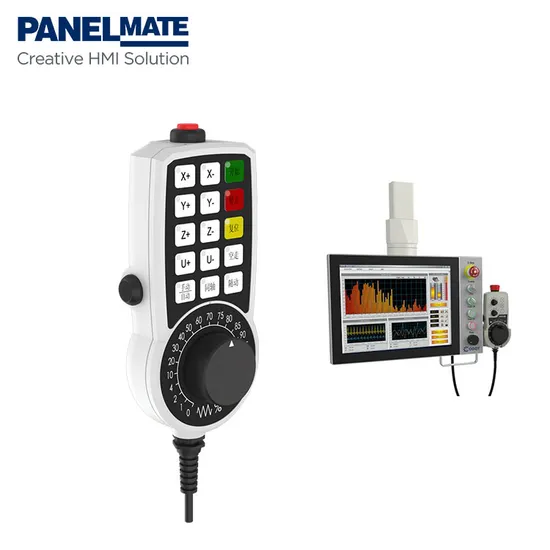

Codesys Ethercat 3.7V Wireless Manual Pulse Generator Magnification Switch Emergency Stop Button Enable Switch Hand-Held Pendant Station
Basic Info.
Model NO.
HPS11E-15K
Certification
ISO9001
Material
ABS
Signal Transmission
Ethercatbus
Transmission Distance
<50m
Type
Button
Universal
Universal
Voltage
24V
Mounted
Magnet+Holder
Magnification Switch
21 Positions
Membrane Switch
15 Keys
Emergency Stop
Yes
Communication
Ethercatbus
Connection
2.5m Net Cable
Powersupply
DC 24V
Operating Temperature(ºC)
-20~60
Protection
IP50
Transport Package
Carton Box
Specification
180 x 88 x 56mm
Trademark
Panelmate
Origin
Shanghai, China
Packaging & Delivery
Package Size
30.00cm * 20.00cm * 8.00cm
Package Gross Weight
1.700kg
Product Description
| Model | HPS-11E-15K | HPS-21W-15K | HPS-21W-24K | HPS31E-3K | HPS-41E-3K |
| Size(LxWxH/mm) | 180 x 88 x 56 | 177 x 88 x 56 | 177 x 88 x 56 | 180 x 88 x 56 | 177 x 88 x 56 |
| Material | ABS | ABS | ABS | ABS | ABS |
| Communication | EtherCATbus | ADS protocol | ADS protocol | EtherCATbus | EtherCATbus |
| Connection | 2.5m networkcable | Wireless | Wireless | 2.5m networkcable | Wireless |
| Voltage | DC 24V | DC 3.7V | DC 3.7V | DC 24V | DC 3.7V |
| Protection | IP50 | IP50 | IP50 | IP50 | IP50 |
| Net Weight(kg) | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 |
| Carton Size(cm) | 30 x 20 x 8 | 30 x 20 x 8 | 30 x 20 x 8 | 30 x 20 x 8 | 30 x 20 x 8 |
