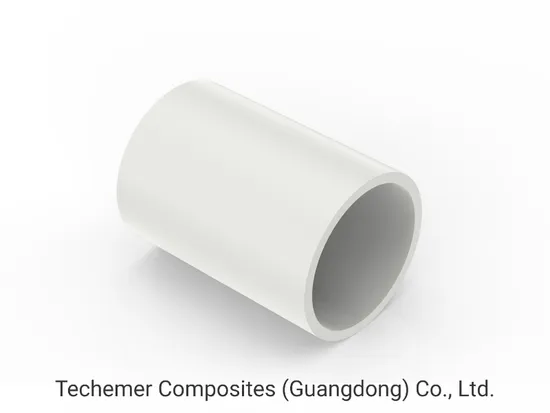

Elastomeric Alloy Sleeve Used in Pump, Hydro Marine Self-Lubricating Shaft Tube Water Lubricated Bushing Bearings Mechanical Boat Propeller Lip Seals OEM
| US$1.00-10.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
INDRON TSTN
Lubricant & Load
Hydrodynamic Bearing
Bushing Material
Elastomeric Alloy
Bearing Direction
Radial
Lubricating Way
Maintenance-Free Bearing
Lubricating Film Thickness
Water
Transport Package
Heavy Duty Carton or Wood
Specification
According to the Drawings
Trademark
INDRON
Origin
China
Production Capacity
1000000
Product Description
INDRON® Elastoplastic Polymer The "bonding" durable high-efficiency self-lubricating micro-crystals and extreme pressure particles in INDRON ® TSTN realized a good balance of low friction and high wear resistance, where dry start is available. It is suitable for heavy-duty bearings with insufficient intermittent lubrication or risk of adhesive wear.What bearing materials are more suitable as the materials used for water pump guide bearings, Babbitt alloy, rubber, ceramics or new polymer materials? It is advisable to take account of the lubrication requirements, use environment and maintenance cycle of the equipment
COMMON GUIDE BEARING MATERIALS
| Bearing type | INDRON bearing | AR bearing | Ceramic bearing | Rubber bearing | Babbitt alloy bearing |
| Characteristics | The performance is close thordon, which can use more equipment assembly methods. In addition to traditional installations by freezing and pressurizing. It can also be installed by coating reactive thermal polymerization Dx and cold sticking. | Good wear resistance and impact resistance. The bearing hardness is high; the shaft sleeve is easy to wear; the temperature difference changes greatly; there will be the risk of shelling; the price is high. | Wear-resistant, heat-resistant, corrosion-resistant, lubricated by pump circulating water, capable of dry grinding for a short time, high requirement on accuracy in processing and assembly, fragile and the most expensive. | It has a long history and mature manufacturing process, featured by wear resistance, anti-seismic, impact resistance, convenient assembly/disassembly and low price (only 20% of ceramic bearings price) | Wear resistance and impact resistance require a set of more complicated sealing and lubricating devices and mechanisms. |
| Lubricating requirements | Clean water can be used for lubrication or 150s dry start according to the material grades. | Dry start more than 180S without clean water lubrication. | It can be lubricated by pumping medium without special clean water lubrication. | Clean industrial water | Grease lubrication requires a grease supply lubrication system. |
| Working temperature | ≤70ºC | ≥273ºC | The bearing itself can withstand the temperature of 1,400ºC | ≤50ºC | ≤65ºC Short time up to 80ºC |
| Application site | For pumping stations short of clean water or pumping stations requiring short-term dry friction, hRBR grade is suitable for water quality with moderate sediment content. | Pumping stations without clean water or pumping stations requiring dry friction of more than 180S. | Pumping stations without clean water or pumping stations requiring short-term dry friction. | Extensive application in any pumping stations with clean water sources. | The liquid of the pump itself cannot be used for bearing lubrication in the pumping station. |
| Bearing type | INDRON bearing | AR bearing | Ceramic bearing | Rubber bearing | Babbitt alloy bearing |
