Shine and Jam Gel Automatic Honey Tomato Cheese Mayonnaise Paste Piston Pump 4 Heads Filling Machine Metal Cap Torquing Elevotor Single Side Top Side Label Appl

Shine and Jam Gel Automatic Honey Tomato Cheese Mayonnaise Paste Piston Pump 4 Heads Filling Machine Metal Cap Torquing Elevotor Single Side Top Side Label Appl

US$16,000.00-17,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PX-BFC80
Type
Piston Filling Machine
Automatic Grade
Automatic
Material Type
Paste
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Multi-Room Feeding
Dosing Device
Plunger
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Linear
Packaging
Bottle
Packaging Material
Metal
Drive
Servo System
HMI
7.5” Color Touch Screen Control
Protection
Comprehensive Safety Alarm System
Detecting System
Vial Detector & Counter
Transport Package
Non-Fumigation Wooden Box
Specification
1200*900*2200mm
Trademark
PAIXIE
Origin
Shanghai China
HS Code
8422301090
Production Capacity
2000 Bph

Product Description


Product Description
The latest PX-BFC80 SmartFiller integrated filling line is rated at 40 fillings per minute, depending on filling volume. Use online filling 30-650ml containers. The machine is servo driven, which helps to maintain accuracy and speed, you only need to enter the ideal filling volume and speed in the HMI interface, this is the significance of the servo motor. At the top of the machine, we use the mixing hopper, which makes the equipment suitable for liquids and pastes. The mixing motor drives the mixing paddle, which makes the filling materials have a strong fluidity. It can fill different bottles, we set a scale in the adjustment part, used to record the position relationship of different specifications of bottles to the equipment. This greatly enhances the convenience of the device.
You may be warrying those ?
1- How can i fill so many formats my bottles with the machine perfectly withour complex adjusment ?
2- How can i understand your quality ?I do not want any kinds bad machine which failed to live up to my investment .
3- How can i know your machine life ? It looks always beautiful but only in your room .
4- How can i install such a big long machine by myself ? It looks never eaasy at all .
5- How can i recognize the real difference in chinese market ? So many suppliers quoted me every day !!!
6- What can i do if machines get broken in broken ? Who is gona to help me ?
To look how PAIXIE boys do
Compared with tradtional machinery , PAIXIE smart filler has below characters which are benefited to each customer operation experience :
1- With servo driving , operator just edit the filling parameter on HMI to realize all kinds products packing .
2- 150mm width SS304 protection frame which equied with induction switch is able to stop machine whenever operator open the plexiglass door which is good for human protection .
3- PAIXIE'S machines are all equiped with scale rules for diffeferent kinds bottle replacing , which is convenient for date recording and save the time in adjusting .
4- All PAIXIE'S machine are made of SS304+SS316 which avoiding pollution perfectly , protect custoomer's product quality .
5- Machines are deliveried as whole which solving the stress of after sell installation for customer . PAIXIE'S technicians are standing by all time for on-site service .

Real machine factory scene

Product Parameters

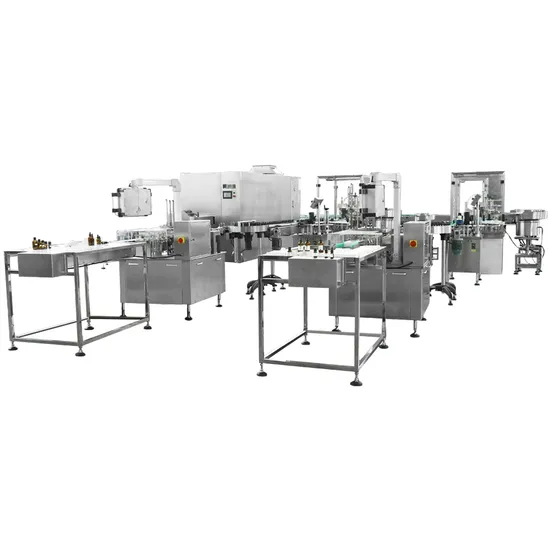

Model PX-BFC80 filling line
Components Bottle feeding + 4 heads filling +cap torquing +labeling +packing table
Filling heads 4 heads linear
Filling pump Piston pump
Pump volume 100-650ML
Capping heads Double heads star wheel capping
Cap arrangement Cap elevator
Labeling type Round bottle pressing labeling
Label type Colorful /Transprent sticker label
Driving engine Servo motor for filling
Magnetic torque motor capping
Stepper motor labeling
Unit size 1200*900*2200mm
Power 5.5KW complete line
Air pressure 0.6-0.8Mpa
Control PLC control
Filling precision ±1%
Filling temperature High mixing hopper with hot temperature filling
Material SS304+SS316
Detection Photocell detecting +PLC control
HMI 7.5" Color Touch Screen Control
Protection 150mm ss304 frame with plexigalss cover emergency switch
Weight 550KG unit
Real details
Piston pump filling station drived by servo which is contributed to precision and speed control .
For different format changing , here we set scale for measurment which is convenient in operating .
Servo motor in running
Capping machine
Cap elevator
Labeling machine
