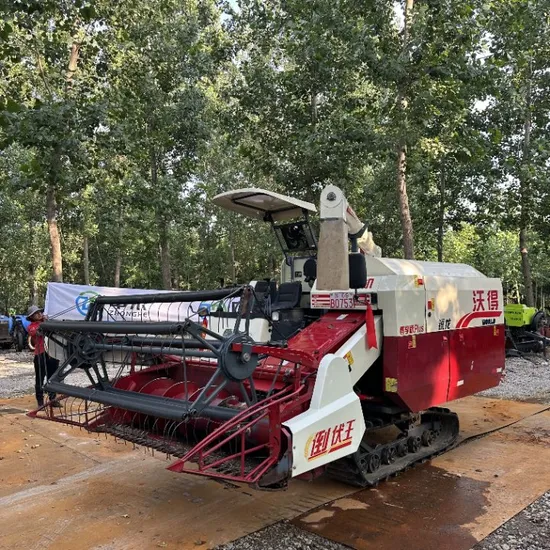

FM World Combine Rice Wheat Corn Harvester
Basic Info.
Model NO.
4LZ-6.0
Application
Rice, Corn, Wheat, Soybean
Power Source
Diesel
Harvest method
Uprooted
Drive Type
Gear Drive
Transmission
Soft Shaft
Portable Harvester Type
Backpack Type
Certification
ISO9001:2008
Color
Wihite
Condition
Used
Application Field
Agriculture
Warranty
Online Service
Horsepower
118HP
Cutting Width
2200mm
Hst
45cc
Feeding Capacity Harvesting(Kg/S)
6.0
Gearbox
85
Granary Storage Capacity
1600L
Transport Package
in Container
Specification
5840x2520x2950mm
Trademark
Fmworld
Origin
China
HS Code
843351000
Production Capacity
500 PCS/Year
Packaging & Delivery
Package Size
3943.00cm * 2235.00cm * 1950.00cm
Package Gross Weight
4150.000kg
Product Description
The Main Features of the used combined harvester:1.Equipped with turbocharged engine 86.76kw with stronger power and lower fuel consumption.
2.ZKB65 hydraulic gearbox with 45C HST ensures harvester working more smoothly.
3.Rubber track 450x90x51mm brings less ground clearance.
4.The length of threshing cylinder reaches 2050mm, which makes grain less loss.
5.Reverse mechanism is the best solution to solve block of conveyor.
6.Min. Ground clearance reaches 300mm, harvester can work in deep mud fields. of the used combined
harvester:Specification
| Work Dimension L*W*H (mm) | 5840*2520*2950 | ||
| Weight (kg) | 3840 | ||
| Cabin/Sun shade | Sun shade | ||
| Engine Part | Model No. | Changchai 4L88 | |
| Power/Speed (hp/rpm) | 88/2700 | ||
| Fuel | Light Diesel Oil | ||
| Fuel Capacity (L) | 130 | ||
| Fuel Consumption(kg/hm2) | 12~30 | ||
| Start | Motor Starter | ||
| Gear Box | ZKB65 made by WORLD Factory. | ||
| HST | 45CC HST Imported from south Korea. | ||
| Walking Part | Rubber Track | Length of Ground Contact (mm) | 1700 |
| Center Distance (mm) | 1160 | ||
| Size(mm) | 450*90*51 | ||
| Average Contact Pressure (kpa) | ≤20Kpa | ||
| Min. Ground Clearance (mm) | 300 | ||
| Gear Shifts | Variable Sun-transmission 3 Shifts | ||
| Walk Speed (Km/Hour) | Low:0~1.85 Medium:0~6.5 High:0~9 | ||
| Theoretical Work Speed (Km/Hour) | 0.9-6.5 | ||
| Harvesting Unit | Grain Lifter | Divider | |
| Working Width (mm) | 2200 | ||
| Reel Bat | Dia. × Length (mm) | ∮900×2028 | |
| Gearshift Method | Constant Speed | ||
| Adjusting Means | Hydraulic | ||
| Stubble Height[Lift] (mm) | 25cm or above | ||
| Threshing &Harvesting Unit | Threshing Mode | Axial Flow Type, Bullet Rotor | |
| Threshing Rotor | Type of Threshing | Beat Bar | |
| Dia. ×Length (mm) | ∮620*2050 | ||
| Rotating Speed(rpm) | 662/732 | ||
| Fan | Diameter | ∮400 | |
| Separating Type | Vibrating Sieves +Air Blow | ||
| Area of Sieves (Lowe and Upper Sieves) (m2) | 1.645 | ||
The FRQ of the used combined harvester:
1. What's the MOQ?MOQ is 1 set. but for your reference, one 40HQ can load 2 sets, that will save you a lot of sea freight.2. What's the after sales?Our products' warranty is for 6 months. after that, we can still supply technical support and original
spare parts.3. Dose the machine can harvest other crops?yes, except for the rice, the machines can also harvest wheat, corn, soybean, rapeseed, ect. but you may
need to change the cutting table.4. What's your lead time?usually within 15 work days.5. Are you interested in dealership with local company?Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more
machines in local market and supply better service.6. What's your Payment terms?
30% In advance, the balance before shipment
