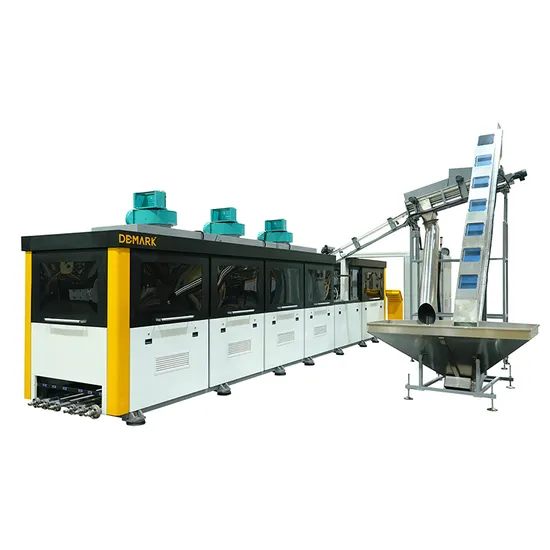

Demark R Series Rotary Stretch Blow Molding Machine Dmk R20

Product Description

Product Parameters

ITEM	R20
Blowing cavities	20
Heating Unit	20
Number of layers of infrared lamps	9
Capacity	40000-45000bph
Voltage	380V
Material	PET
Frequency	50/60Hz
Total Power	490

DMK-R Rotary Blow Molding Machine 6-22 cavities, 12000-48000bph,max. 2.5L, 2,200 bottles/cavity/hour Provide unique design for instant mould conversion The new mould base concept reduces format changeover times. Cut 30% blowing costs, reduce 46% power consumption.
Working Process

Working process as follows:
Put performs into hopper → Elevator send performs to arraying system → Array the preforms → Perform loading → Preform heating → Robot put the heated performs into moulds Lock the moulds and start blowing → Finish blowing→ Robot takeout the bottles → Bottle outlet
The electric control system can make control of automation,carrying out strict control in the process of elevating, arraying, loading, heating and blowing. Human interface achieves central control.
Working principle of blow molding machine:
Main wheel of equipment rotates in high speed. The encoder at the top of equipment and sensors installed on the main wheel test the angle of rotation and give computer feedback. Then in accordance with the operator of the procedures it set (angle) issued directives to executing agency(electromagnetic valve). The implementation process of blowing on a specific time, resulting to complete the process of a two step blowing and produce qualified products in rotating equipment.
Our Advantages
The automatic blowing machine is a revolutionary piece of technology that has greatly improved the efficiency and effectiveness of production in various industries. It has many advantages, including:
1. Speed: The automatic blowing machine can produce a high volume of products very quickly. This enables companies to keep up with demand and stay competitive in the market.
2. Accuracy: The automated process of the machine ensures that each product is consistent in size, shape, and quality. This reduces the risk of human error and ensures that customers receive a product that meets their expectations.
3. Cost-efficiency: Although the initial investment for an automatic blowing machine may be high, it pays off in the long run as it significantly reduces labor costs. This, in turn, lowers the production cost of each item, making it more affordable for consumers.
4. Environmentally-friendly: The automatic blowing machine is designed to be energy-efficient, using less energy to produce each product than traditional methods. This reduces the carbon footprint of the company and its impact on the environment.
In summary, the automatic blowing machine is a highly beneficial technological advancement that has transformed the production process for many companies. Its speed, accuracy, cost-efficiency, safety features, and environmental friendliness make it a worthwhile investment for any company seeking to improve its production efficiency.
