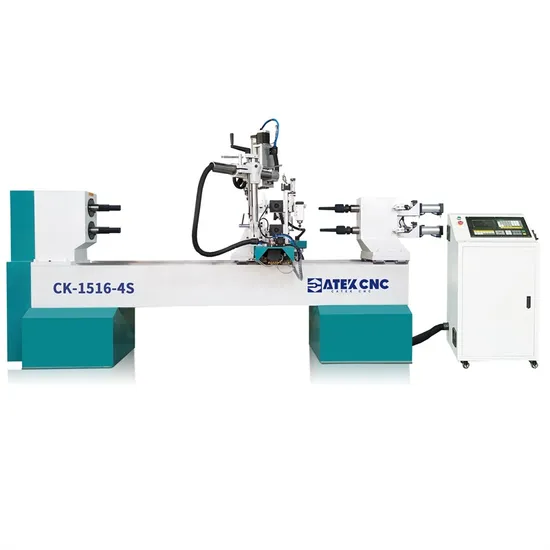

China Standard New Arrivals Ck-1530-4s Engraving 3D Wood Materials Automatic Table Legs CNC Wood Lathe Machine

Product Description

Product Description
Product Parameters

Processing size	1500mm length*160mm diameter (two pieces)
Bed frame	Heavy-duty integral fully cast lathe, independent control cabinet
Motor	4KW pure servo rotating motor
Drive mode	Servo drive
Frequency converter Inverter	BEST inverter/servo variable frequency drive
Motor speed	0-6000r/m
Transfer method Transmission way	The XY axis is driven by 25TBI ball screw, and the Z axis uses high-precision helical rack/TBI 32 ball screw.
Slideway	Taiwan Hiwin High Precision 25 Straight Line Square Rail
Device cable	pure copper cable
Control System	CATEK CNC special control system panel, CK1000TC
Lubrication system	Oil filling and maintenance system
Operating Voltage	AC380V/220V 3PH
Compatible software	Artcam, type3, CAD drawing, CDR, solidworks UG powermill, etc.
Engraving instructions	Standard G code, u00, mmg, plt
Security system	All photoelectric limits of XYZ three-axis
RepeatabilityX,Y,Z Traveling Positioning Accuracy	±0.02mm
Spindle power	HQD 3.5KW high-speed air-cooled spindle*3(Support four-axis four linkage)
Spindle speed	0-18000rpm/min
Toolbox	Turning tools, wrenches, collets, handwheels, thimbles, chucks, oil bottles, oil-water separators, relays, and photoelectric limits.

Detailed Photos
Imported SHANG YIN HIWIN high-precision slider, guide rail, TBI ball screw 3.5KW high-speed air-cooled spindle and equipped with BEST inverter and with a maximum speed of 18000R/M, it is making wood processing more easier
Using pulse hand wheel control for more convenient and precise operation Machines are all using independent control system and with strong
anti-interference ability
4KW pure copper coil with servo high-speed rotating motor, supporting Ordinary three-phase asynchronous motor with a maximum speed of 2880R/M,
position mode and speed mode switching, capable of rotating angles using gear to control the angle with slow speed and low accuracy
with a maximum speed of 6000R/M, high accuracy and fast speed
All adopt DORNA closed-loop servo motors with high torque, accurate Using ordinary motors with low torque, slow speed, low accuracy and prone to
positioning high accuracy and fast speed. errors
The whole lathe uses a heavy-duty integral fully cast bed body which is cast Using ordinary square iron pipes to weld the bed body has the advantages of
at high temperature. The bed body has higher toughness and more stable light weight, machining vibration, easy deformation, detachment from welding,
structure. Improve the effectiveness and efficiency of processed products. poor product processing effect and low efficiency.
Using an intelligent CNC system with a 7-inch large screen and high Old style switch button control with no screen, complex operation and
visualization degree, controllable accuracy of 0.01MM, simple operation requiring cooperation from technical personnel, low automation level which is
and single person can operate multiple machines, improving efficiency inability to fully automate processing, low efficiency, and waste of labor.
and saving labor. Company Profile
Jinan Catek CNC Machinery Co., Ltd Catekcnc is a foreign trade subsidiary of Lingrui located in China Jinan, Shandong Province. Lingrui CNC was established in 2006 with atotal investment of 300 million RMB. Since 2006 our company has been deeply cultivating the Chinese market for 17 years and cooperating with well-known factories in China and OEM manufacturing for many foreign trade companies around the world. In 2023,Lingruin invested in the development of the foreign trade market and established Ruisheng CNC committed to providing the mostfavorable and practical digital control equipment to the world.
The company has 12 large-scale production workshops with total area of 100000 square meters. The company's main production equipment adopts world-renowned enterprise brands, and heat treatment processes of the equipment are at the world's leading level. Key components with the overall structure of the bed and the connecting shaft are all self-developed which is effectively ensuring product quality.
The company's products mainly cover various CNC equipment such as CNC woodworking lathes, CNC carving machines, CNC woodworking machining centers, laser fiber cutting machines, CNC marking machines, etc., which are applied in various industries such as wood, stone, metal, synthetic chemical materials, etc. Whether in manufacturing, construction, handicrafts, advertising, or other fields, our mechanical equipment help customers achieve outstanding achievements. We work closely with our customers listening to their voices and needs, constantly innovating and improving to ensure that our products are always at the forefront of the industry. Packaging & Shipping
Our company has 1500+ professional assembly technicians, 300+ professional after-sales teams and 300+ professional sales teams.Our company has a diversified product composition and production equipment in various fields. No matter what your needs are, we can meet with all your needs.
The company has been deeply rooted in China for more than 17 years, serving more than 10000 domestic customers. Factories are involved in various industries and customer satisfaction is 100%. It has become a well-known CNC brand in China. Whether you are a CNC novice or an expert CATEKCNC can meet your any requirements.
As a senior OEM factory has cooperated with many well-known foreign trade companies and shipped equipment to more than 100 countries and regions around the world FAQ
1.Are you a factory or a trading company?
We are a factory with an export license.
2.Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4.How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5.Do you have installation and equipment debugging services?
Yes, we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6.Can the machine be customized according to my requirements?
Yes,customization is possible. We have a professional team with professional experience. Our goal is to satisfy our customers.
7. Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
8. What are the payment methods?
There are two payment methods.
(1) T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.
(2)Secure Payment. Reliable and secure, will charge a handling fee.
or if you have other payment methods, we can also consider them
