Energy Saving Standard Injection Molding Machine for Planter Box Making Machine

Product Description

HIGH PRECISION INJECTION MOLDING MACHINE
Powerjet New Series Hydraulic Injection Molding Machine With Faster Injection And Plasticizing Speed, More Stable And Higher Efficiency.
Faster injection speed & charging speed, better stability, higher Efficiency
Clamping Force: 900~10000(KN)
Driving System: Hydraulic
Motor Type: Servo
Applications: Food And Beverage Packaging, Necessities Products, Home Appliances, Electrical Components, Automotive Parts, etc.
Machine Details

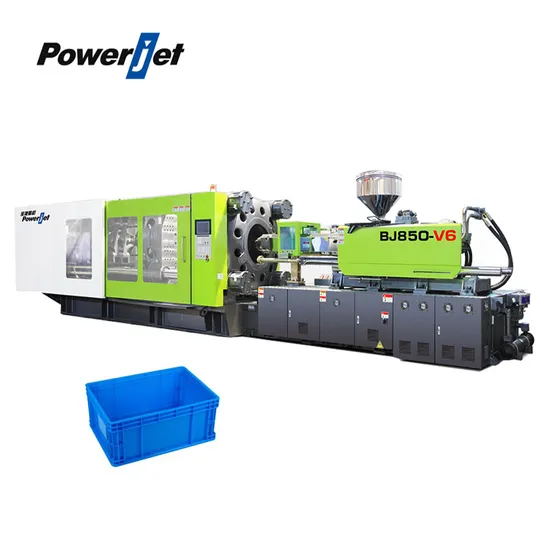

Small injection molding machines Powerjet brand

Description		UNIT	BJ850-V6/S6
CLAMPING UNIT	Clamping force	KN	8500
	Opening stroke	mm	1030
	Max.datlight	mm	2080
	Platen size	mm	1550x1500
	Space between bars	mm	1040x1040
	Max.mold height	mm	1050
	Min.mold height	mm	350
	Ejector stroke	mm	280
	Ejector force	KN	184
INJECTION UNIT	Screw diameter	mm	90	100	110
	Screw L/D Ratio	L/D	23.6	21	19.3
	Injection Pressure	MPa	206	167	138
	Shot volume	cm³	3149	3888	5598
	Shot weight (ps)	g	2804	3462	4985
		oz	98.9	122.1	175.8
	Injection rate	g/s	515	636	916
	Screw stroke	mm	495
	Screw speed	rpm	120
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	37+37/30.8+40
	Heater power	KW	42
GENERAL	Dry-cycle time	s	-
	Oil tank capacity	L	800
	Machine weight	T	36
	Machine dimensions (L*W*H)	m	10.6x2.36x2.7

Company Profile

We have established a global marketing network. To deliver the value of Powerjet injection molding machine and extrusion blow molding machine to over 100 countries area. Multiple senior managers and business elites worldwide. Become trustworthy partners. Provide the most thoughtful service and fastest user support for you constantly. sincerity for you.
Satisfied Customers

FAQ

Q1: Are you a manufacturer or trading company? A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine. Q2: Delivery time A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly). Q3: Where is your factory located? A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
