Industrial Food Blender Candy Powder and Liquid Fertilizer Mixer Gypsum Mixing Equipment

Product Description

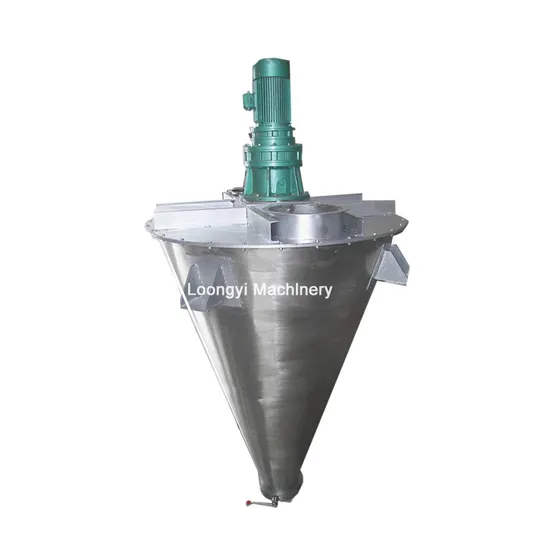

Product Description WH Series Double Spiral Mixer
Product Introduction:Double auger shaped mixer is the introduction of the experience in advanced technology abroad,with powder, grain and liquid mixing effect. Spiral material change into material flow by self-rotationwith high speed. It is widely used for chemical industry, pharmaceutical, pesticide, compound fertilizer,dye, pigment, rubber, building material, food, feed, additive, fine chemical industry, mine, non-metal, ceramics, fireproofing, powder etc., solid-solid, powder-liquid mixing.
Main Features:The material is made to conduct a compound motion in the cone because of the rotation and revolution of the screws. The effected motions include: The revolution of the screw along the wall making the material conduct a circumferential motion; The rotation of the screw making the material rise along the screw from the cone bottom; The compound motion of the rotation and revolution of the screws making partial, material be absorbed into the screw cylindroid meanwhile, under the action of centrifugal force, the partial material in the screw cylindroid discharges radially. The raised material drops under its sole weight. The four kinds of motions effect convection, shearing, diffusion in the cone, thus quick and even mixing can be achieved. Product Parameters
Technical Data:

Model	WH-0.05	WH-0.2	WH-0.5	WH-1	WH-2	WH-4	WH-5	WH-6	WH-8	WH-10
Whole volume (m3)	0.05	0.2	0.5	1	2	4	5	6	8	10
Capacity(kg/ batch)		95	190	380	720	1400	2400	2880	3840	4800
Loading	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6
Material particle(mm)	20-250	20-250	20-250	20-250	20-250	20-250	20-250	20-250	20-250	20-250
Power(kw)	1.5	22	3	4	5.5	11	15	18.5	18.5	22
Mixing time(Min)	6-10	6-10	6-10	8-10	8-10	8-10	8-10	8-10	8-10	8-10
Overall Size(mm)	610 × 1450	890 × 1850	1160 × 2250	1450 × 2700	1850 × 3450	2260 × 4210	2578 × 4566	2710 × 4782	2950 × 5392	3168 × 5735
Weight(kg)	200	600	800	1200	1800	2500	3400	3550	3700	3950

Detailed Photos Product Pictures:
