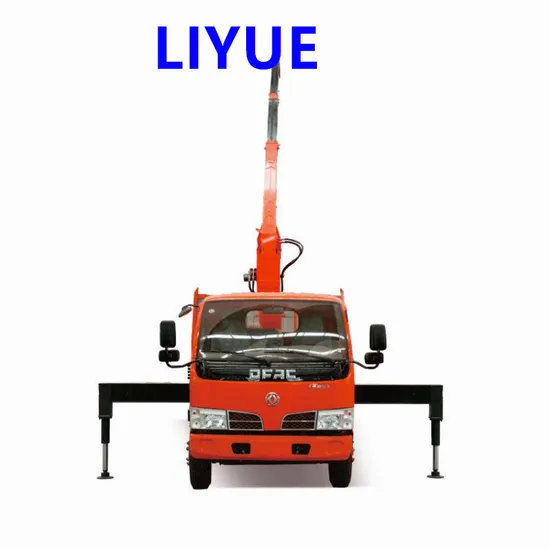

Chinese Brand 6 Ton Hydraulic Boom Truck Mounted Crane with Factory Price

Product Description

Multipurpose faucet 6.3 Ton Small Trailer and Truck Lorry-Mounted Crane Cheap Price for Sale Product Description

NOTE: The price is only for crane part.

Project		Unit	Value
Crane Dimension	Crane Model	---	SQ 6.3T
	Max. Lifting Capacity	kg	6300
	Max. Lifting Height	m	8.7
	Working Radius/ Span	m	2.5-11
	Rotation Angle	º	360
	Boom Raising Angle Scope	º	0-75
Chassis Truck Data and Weight	Chassis Brand	---	Dongfeng
	Overall Dimensions (L*W*H)	mm	9000*2500*3850
	Cargo Body Dimensions (L*W*H)	mm	6000*2300*550
	Total Mass	kg	15800
	Rated Loading	kg	4225
	Front and Rear Axle Load	kg	5600/ 10200
	Engine Model	---	ISD185 50
	Engine powder/ Engine Displacement	HP/ml	185/ 4500
	Engine Torque Ratings	N.m/, r/min	650/1400
	Drive Type	---	4*2 Left/ Right Hand Drive
	Emission Standard	---	Euro 3/ Euro 5
	Wheel Base	mm	3800
Working Parameter	Diameter of Wire Rope	mm	8
	Length of Wire Rope	m	55
	Speed of Sing Rope (No Load)	m/min	67
	Max. Lines of the Hook	Times	4
	Safety Device	---	Turn off Alarm
	Max. Lifting Torque	T.m	12.5
Travelling Parameter	Max. Travel Speed	Km/ h	90
	Max. Gradeability	%	30
	Min. Turning Diameter	m	14.5

Client Visit

Adhering to "good quality, competitive prices, fast delivery, and good after-sales service" in mind, we welcome customers from all over the world to visit us.

Production Process
After Sales Service


Pre-sales: We always try our best to fully understand customers' needs and therefore to develop several solutions for them to choose the most suitable machine. We offer free and professional consultation service to the engineering technical personnel and users from customers' sides. We can also provide free small parts within 2 years.
Sales Tracking: Our technician will follow up the installation and debugging in the whole process. After customer acceptance, we provide about 3-7 days free operation and maintenance training for customers.
After Sales: We provide 2 year's guarantee and life-long maintenance for our products. Free repairing or replacement (except for wearing parts) is available for our products for their functional defects (except for artificial or force majeure factors) within warranty period. After warranty period, we only charge artifacts according to the actual situation.
After Sales Service
2 Years extra long warranty service
1. Spare Parts
We will supply more than 15 kinds spare parts with the crane for free.
2. Artificial damaged fittings outside warranty
Customers bear part of the freight, we provide free accessories for customers.
3. More serious damage
We will send professional technicians to the customer for maintenance.
Certifications

Company Profile

Henan Liyue Machinery equipment Co., Ltd., located in Lankao County, Henan Province, is located in the middle of the Future Avenue of Industrial agglomeration area, is a trading and manufacturing combo.Established in 1980, our company covers an area of more than 66000 square meters and currently employs 320 people, including 30 professional and technical personnel, 15 senior technicians and 6 senior engineers. We have a large-scale cutting machine, bending machine, CNC cutting machine, copying cutting machine, plate rolling machine, square tube sewing machine, moving beam gantry milling machine, shot blasting machine and numerical control lathe and other equipments. Our company has launched 3T-25T truck cranes, truck mounted cranes and marine crane to fill the domestic blank market, and exported to more than 20 countries and regions such as South Africa and Angola market.We exported to more than a dozen countries and regions such as Thailand, Turkmenistan, Kazakhstan, Vietnam, Bhutan and so on. As the manufacturer, we accept OEM/ ODM orders..

FAQ

1 Are you manufacturer?
Yes, we are the manufacturer.
2 What kind of truck cranes do you produce?
We produce truck crane and truck mounted crane from 2.5T to 25T.
3 What kind of truck chassis do you use for cranes?
We use Dongfeng, T-King truck and the other Chinese chassis for our cranes.
4 What are your payment methods?
T/ T, L/ C, West Union, Paypal, Money Gram and Alipay.
5 What is the delivery time for the cranes?
The delivery time is within 40 days after we receive the deposit.
