CNC Stone Mining Diamond Wire Saw Cutter for Cutting Granite Quarry/Construction

Product Description

Product Description
ZL-WSM001 Diamond Wire Saw Machine For Stone Quarry/Blocks,Reinforced Concrete Steel Bridge Ships Walls Construction Building Materials Cutting
Product Parameters

1. Products Description
1. Z-LION diamond wire saw machine adopts dual inverter + PLC + touch screen electronic control mode.
2. According to the changes of the load, to automatically adjust the walking speed, making the bead rope is always in the best working condition.
3. it can keep the wire tension constant during stone or concrete block cutting.
4. Extension of the front column, to improve the straightness of the block squaring.
5. Unique pulley guiding device, to maximize the utilization of the wire
6. Protection function: wire broken, overload and open phase protection
7. Easy to operate, there is no requirement for the power phase
8. Easy to move
Advantage:
· Stable quality with reasonable price
· Low energy consumption and long life
· ISO certificate
· OEM/ODM
· Strictly raw material source and production quality control ensure stable quality.

2. Technical Parameters

Driving Motor Power (KW/HP)	75KW-6P/8P 100HP-6P/8P	55KW-6P/8P 75HP-6P/8P	45KW-6P/8P 60HP-6P/8P	37KW-6P/8P 50HP-6P/8P
Flywheel Diameter (mm)	800/1000	660/800	660/800	660/800
Wire Saw Length(mm)	20-150	20-120	20-100	20-80
Wire Saw Diameter(mm)	11.5	11.5	11.5	11.5
Line Speed (m/s)	0-50	0-40	0-40	0-40
Walking Speed of Machine (m/h)	0-100m/h (Slow: 0.36m/min; Fast: 2.20m/min)
Total Power (KW)	78	58	48	40
Walking Moter Power (KW)	0.75 (6P)
Driving Head Rotation Motor Power (KW)	1.5 (6P)		1.1 (6P)
Driving Head Walking Motor Power (KW)	1.1 (6P)
Rotation Angle	360°
Driving Head Moving Range (mm)	0-600		0-550
Rail Length (mm)	4*2m+1*1m
Driving Motor RPM (r/min)	980/740
Allowed Working Temperature	-15°C/+40°C
Voltage	AC380±10% 50HZ
Net Weight (T)	2.8T	2.4T	2.3T	2.1T
Dimension L*W*H (mm)	2200*1450*1650		2000*1250*1500

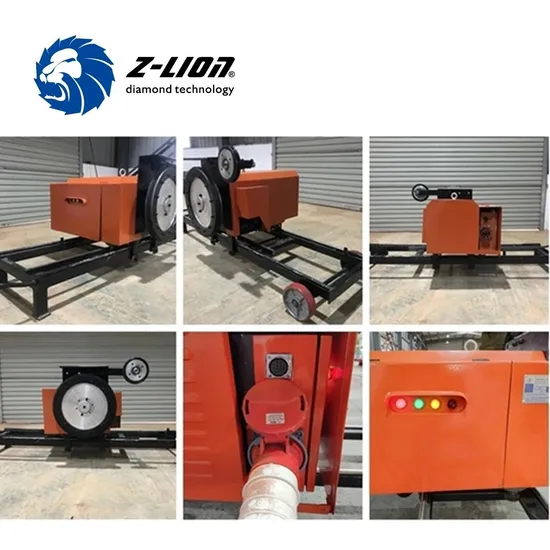

3. Products Details
4.Application The machine can be used for cutting bridge, support beam of building and for splitting small stone blocks. Product Application:
5.Packing details First, wrap the machine with plastic film. Second, pack the machine into the wooden cases. Finally, fix the wooden cases on pallet for easy transport by sea.
6.Shipping1. Delivery time For sample, 7-15 working days once payment confirmed. For bulk, depends on the quantity.2. Shipping Method For sample order which is less 45kgs, Express will be a better choice. (DHL, UPS, FedEX, TNT, etc.) For normal order which is 45-100kgs, Air Freight will be a better choice. For normal order which is above 100kgs, Sea Freight will be a better choice.
Our Services
Payment Terms T/T, western union, PayPal, L/C; For small order:100% payment before delivery;For large order:70% T/T before delivery, and 30% after delivery. Services Manufacture company, with more than 20 years experiences in diamond Segment,diamond wire saw, diamond saw blade production. Inspected by the ISO 9001-2015 Certification. 100% QC inspection Before Shippment. OEM and ODM are available,Cost-effective price MOQ: Any quantity you need is welcomed.
Customized Design: We can produce according to your request
Good Quality: Strict quality control system.Products get great feedback from customers.
Fast Delivery: We can delivery our cargo in 7 days, as soon as possible.
