Good Price High Steel Coil Cut to Length Line, Decoiler Line, Steel Coil Slitting Line, Exported to Vietnam, Dubai, Russia, India

Product Description

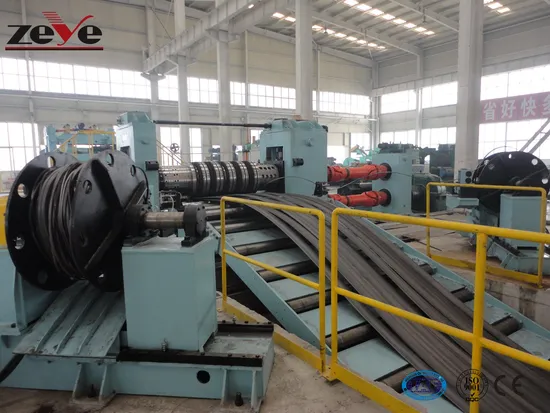

Cnc Slitting line ZSL series Slitting line ZSL series Slitting line is mainly used for metail coil shear from decoiling,feeding, head shear, loop, slitting to recoiling.
Its function is to shear wide metal coil longitudinlly into narrow coils.
Application material: cold rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc.
Main Units
1.Entry coil car,
2.Uncoil,
3.Feeding device,
4. Hydraulic head shear,
5.Looper,
6.Slitter machine,
7.Scrap winder,
8.Looper,
9.Tension device,
10.Hydraulic shear,
11.Recoiler
12.Exit coil car.
Slitting Line Layout

Main Technical Parameters

odel	ZSL-6	ZSL-8	ZSL-12	ZSL-16	ZSL-20/25
Material thickness	1.5-6.0mm	2.0-8.0 mm	3.0-12 mm	4.0-16.0 mm	6.0-20/25 mm
Material width	300-1600 mm	300-1800 mm	300-2000 mm	300-2000 mm	300-2200 mm
Slitting quantity	30	25	25	20	20
Width accuracy	±0.10 mm	±0.10 mm	±0.20 mm	±0.20 mm	±0.20 mm
Cutting burr	<3%	<3%	<3%	<3%	<3%
Winding split level floor	<1 mm	<1 mm	<1 mm	<1 mm	<1 mm
Line speed	120 m/min	100 m/min	80 m/min	60 m/min	60 m/min
Coil weight	20,30 t	20,30 t	20,35 t	20,35 t	20,35 t

Our Advantages
1. Our parts of equipment are produced by Japan MAZAK, Spain CORREA cnc etc. the world class the most advanced
processing equipments. Which can ensure to produce out high precision parts.
2 Every part has been finished it's own complete technology process, such as forge, rough machined, heat treatment, cooling, burring, tempering, finish turning , milling, drill, thread tapping, match pin, surface quenching,coat the anti-rust oil, fine grinding, test ,entry warehouse, which ensure every part meets it's the best performance.
3.Strictly inspection every section during production and assembly process, to ensure every part to be used is qualified. Part Of Our Customers Due to enjoy the high reputation of our shearing products, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, SANDEN etc. famous companies. Company Introduction Shandong Zetian CNC Machine Tool Co., Ltd (short for Zetian )and Jinan ZeYe Machine Tool Co., Ltd (short for ZeYe) are brother enterprises. Zetian is for import and export business, ZeYe is one professional manufactory, was founded in 1997 in Jinan city, Shandong Province, China. ZeYe is mainly engaged in developing ,manufacturing and sales of Cut to Length Line, Slitting Line, Flying Shear, Moving Shear, Slitting and Cut to Length Combined Line, Leveling Machine.
Our products are widely used in steel plant,automobiles, pipe mill,plate processing, household appliance, mechanical, hardware industries etc. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, stainless steel, pre-painted steel, aluminum, and Q355, 700L other metals
We have one professional technical team and after sales service team, we are ready to serve you at all the time.
FAQ
Q:Could you provide us the best price.produce the shearing line as per customer's requirements?
A: Yes.We are directly-sale professional factory. And also we besure supply you high quanlity and high accurate shear lines.
Q:What products does your company produce?
A:We product Automatic Steel Coil Slitting line,Cut to length line,Rotary shear,Moving shear,Composite line, etc.
Q: Could you produce the shearing line as per customer's requirements?
A: Sure, we are a professional manufacturer specialized in shearing line for 26 years.
We have a strong design & technical team and manufacture ability to reach your requirements.
Q: How to choose slitting line or cut to length line and get accurate quotatio?
A:Please tell us your coil material,coil thickness,coil width, cutting type,coil weight, and other special attention.
Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.
Warranty: 12 months after the equipment run normally .
Welcome to visit our factory.
Hope to get win-win development and wonderful furture with customers!
