Risun Eib/Knx Bus Cable E-Bus J-Y (St) Yh 2X2X0.8 mm Instrumentation Cable

Product Description

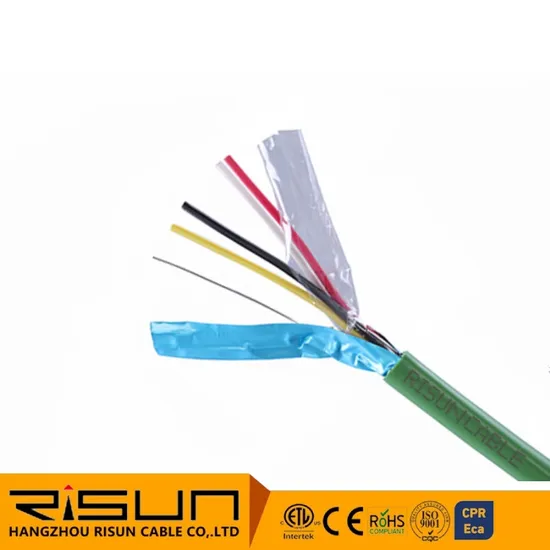

Risun Eib/Knx Bus Cable E-Bus J-Y (St) Yh 2X2X0.8 mm instrumentation cable
Product Description

KNX bus cable
Conductor material	Solid bare copper
Conductor dimension	0,80mm (AWG20)
Number of pairs	4
Insulation material	HDPE/PVC
Color	yellow / red / black/white or as required
Separator	Plastic foil
Drainwire	Solid copper (0.4 mm (AWG26))
Shielding	Aluminum-polyester
Sheath	PVC / LSZH
Certification	ETL/CE/ROHS/ISO9001/CPR

REACTION TO FIRE CLASSIFICATIONPVC: CPR Euroclass: EcaLSZH: CPR Euroclass: CcaDetailed Photos
Application
EIB/KNX is a Shielded Bus Cable which meets the requirements of the "European Installation Bus" standard. It is widely used in Building System Technology to control Lighting, Ventilation, Heating, Air-conditioning,Blinds, Time Management,Energy Management and locking System. The cable also powers the sensors used. The cables can be used in dry, wet or damp areas either inside or outside (if protected form direct sunlight), but can't be directly buried.
Company Profile
RISUN is Professional in manufacturing of high quality network cable/lan cable , coaxial cable, telephone wire and alarm cable. We specialize in this field for 17 years, and have already get ETL, CE, RoHS, ISO9001,CPR certification etc.
We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.
RISUN has for four complete production line.10 thousands box of knx bus cable per month.Exhibition
Packaging & Shipping
Our Advantages
Quality Cables with Reliable MaterialsManufacturing a quality Cables starts with using quality materials and components.
We strictly evaluate the quality and reliability of incoming materials to manage our supply chain, and our clients can be absolutely confident about our products.
Double Check, Double AssuranceWe develop strict quality control standards in manufacturing to ensure consistency in processes, and we carry out a double-check before delivery.
We conduct final and complete inspection on each of Cables to ensure that the goods we deliver are perfect, whether it is a small or large order.Efficiency from the very first stepWe have the full control over our process,from raw material to cable cutting to finishes.
as all the product phases, such as design,engineering. product development and production. are made exclusive by us in our plant, which allows us to:keep full traceability of our final productassure high quality product levelcustomer-oriented productionquick reaction to market requirementsFAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.
Q2. HOW LONG IS YOUR DELIVERY TIME?A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.
Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?A: Normally, 10kms per one specification and one color
Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.
Q7. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment . WELCOME TO RISUN!!!
