Js1000 Js1500 Js2000 Skip Hoist Twin Shaft Concrete Mixer

Js1000 Js1500 Js2000 Skip Hoist Twin Shaft Concrete Mixer

US$3,000.00 1 Piece (MOQ)

Basic Info.

Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Welded Molding Machine
Structure
Cylinder Type
Productivity
25m²/h
Feeding Height
1400mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Customized
Transport Package
Original Package
Trademark
shengmao
Origin
China
HS Code
84743100
Production Capacity
200/M

Product Description

JZRConcrete Mixer

JZR350 diesel motor cement mixture machine concrete mixer machine is of middle capacity, self-falling type. It is suitable for mixing plastic and low-slump concrete. The aggregate size is required to be smaller than 60 mm.The drum revolves for mixing and reverses for discharging. The rated output capacity of this mixer is 0.50 cubic meter.
Model
JZR350
JZR500
Hopper Lifting Model
Hydraulic Tipping Hopper
Hydraulic Tipping Hopper
Power Source
Diesel Engine
Diesel Engine
Charging Volume
560 L
750 L
Discharge Volume
350 L
500L
Dimension
3250*2240*3200 mm
3750*2240*3800 mm
Weight
1610 kg
2050KG

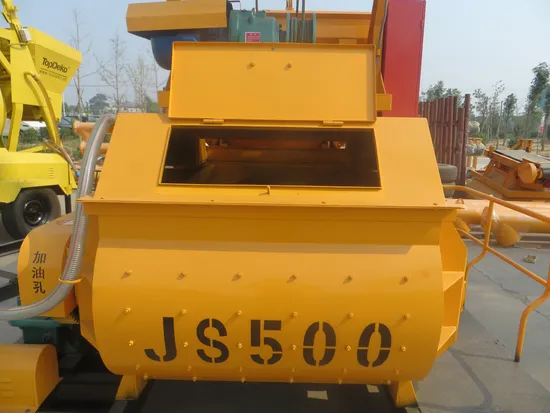

JS twin shaft mixer
JS series concrete mixer is double horizontal axle forced mixer, which has double advantages of single machine independent operation and simple concrete mixing station composed with PLD series batching machine. It can be used in various factories, highway, bridge, water conservancy wharf and other industry and civil construction projects. It can mix dry and hard concrete, plastic concrete flowing concrete ,cartilage aggregate,and various kinds of mortar, is a kind of high efficiency machine.

Product advantage:
1. Hydraulic (pneumatic) door unloading, safe and reliable.
2. Mixing blade, liner as alloy material, adding ferromanganese, ferrochromium, ferrovanadium and other elements, very wear-resistant.
3. The mixing speed is fast and the efficiency is high.
4. Integral casting spiral stirring arm has high strength, wear resistance and low force.

Item JS500 JS750 JS1000 JS1500
Charging Capacity 800L 1200L 1600L 2400L
Discharging Capacity 500L 750L 1000L 1500L
Productivity 20-25m3 35m3 50-60m3 75m3
Max Size of Aggregate (Pebble/Macadam) 40/50 80/60mm 80/60mm 80/60mm
Overall Weight 4000kg 5500kg 9700kg 11130kg

Planetary mixer

Vertical Shaft Concrete Mixer works with high quality and high efficiency, and mixes evenly without dead ends.
is mainly used in building materials,concrete such as dry-hard, semi-dry-hard, plastic concrete, UHPC concrete and fiber concrete.
Planetary Mixer concrete is also applied in refractory materials, chemical industry, casting, metallurgy, ceramics, glass and other related industries, it can meet requirements of high homogeneous mixing of material

Item CMP500 CMP750 CMP1000 CMP1500 CMP2000
Input capacity 750L 1125L 1500L 2250L 3000L
Out capacity 500L 750L 1000L 1500L 2000L
Mixing power 18.5kw 30kw 37kw 55kw 75kw

Weight
2400kg 3900kg 6200kg 7700kg 9500kg

Our service
Pre-sale Service1 Answering customers' questions, helping customers choose the most suitable machines;2.Making design drawings as per customers' requirements;3. Providing quotations.
In-sale Service1. Strictly control all prodedures from raw materials sourcing to pre-assembly to ensure product quality;2. Regularly updating production production progress to clients;3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;4. Proper packing to minimize the risk that the machines are damaged during transportation;5. Foundation drawing will be provided for clients to make foundation in advance.
After-sale Service1. Providing 7 * 24 hours online after-sales service every week2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.3. Arranging engineers to go to client's job site. The engineers will help clients with the machine installation, machinetest-running and operators training etc.4. Spare parts supply;
5. Job site visiting every year
