Jinan Portable Laser Welder Handheld Fiber Laser Welding Machine 2kw 3kw

Jinan Portable Laser Welder Handheld Fiber Laser Welding Machine 2kw 3kw

US$3,500.00-9,800.00 1 Set (MOQ)

Basic Info.

Model NO.
DV-LW
Application
Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry, Fitness,Elevator and Kitchen Industry
Technical Class
Continuous Wave Laser
Control
Automatic
Power Density
Deep Fusion Welding
Laser Classification
Optical Fiber Laser
Type
Portable Welding Machine
Working Temperature
5-40 Degree
Selling Points
Easy to Operate
Cable Length
10m or Customized
Cooling Mode
Water Cooling
Power Supply
220V/380V,50-60Hz
Advantage
High Efficient, Powerful and Convenient
Laser Source
Max/Jpt/Raycus
Transport Package
Wooden Box
Specification
1-2CBM
Trademark
D. Ventus
Origin
Shandong Province
HS Code
8515809090
Production Capacity
50 Sets Per Month

Packaging & Delivery

Package Size
140.00cm * 100.00cm * 70.00cm
Package Gross Weight
210.000kg

Product Description

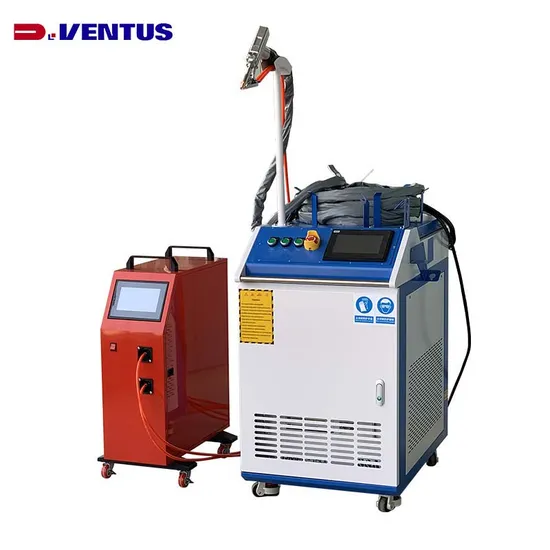

Jinan Portable Laser Welder Handheld Fiber Laser Welding Machine 2kW 3kW

Parameters:
Model DV-LW
Laser Power 1000W/1500W/2000W/3000W
Laser Type Fiber Laser
Wavelength 1064nm
Voltage 220V±10% / 50Hz / 30A
Gross Power <8KW
Welding Thickness < 8mm
Welding Gap Requirements ≤0.5mm
Welding Speed 0~120 mm/s
Welding Head Configuration Swing Welding Head + Water Cooling (optional)
Laser Operation Continuous/Modulation
Beam Divergence Angle ≤1.2mrad/m
Welding Joint Interface QBH
Fiber Wire Length 10m
Spot Dia 0.2-2mm Adjustable
Positioning Red Pointer
Cooling System Industrial Chiller
Operating Temperature 15~35 ºC

Specifications:
1. It could be widely used in complex and irregular welding process such as cabinets, kitchen, staircase, shelf, gridiron, stainless steel door and window guardrail, distribution box, stainless steel furniture and other industries. It is a perfect replacement of traditional argon arc welding, in welding thin stainless steel plate, iron plate, aluminum plate and other metal materials. 2. Smart internal design and interactive control system expand the tolerance range and welding width of the processing parts, and solve the disadvantage of minor laser welding spot, and provide better welding forming.3. Light shape, Ergonomic design, advanced structure, and reliable performance ensure comfort grip and simple operation.4. Nice welding seam, fast welding speed, no consumables, no welding marks, no discoloration, no later polish.

Machine Details of Laser Welder:

Professional fiber laser welding head;
It's handheld type which is of ergonomic design;
This head could be equipped with a variety of angular nozzles to meet the welding needs of different products

Laser Power: 1kw/1.5kw/2kw/3KW;
Laser Source: Raycus/MAX/JPT for option;
Water Chiller: S&A; Hanli
Power Supply: 220V/380V,50-60Hz
Automatic Wire Filler1. Industric design
2. Digital panel which is easy to operate and use
3. Powerful to achieve different thicknesses welding
4. Auto feeding with high efficiency
Various welding spouts to support different angle of welding: Spot welding, parallel welding, stitch welding and vertical welding.
Application:

Machine Layout:
Reliable Services:
1. All of machines are fully assembled and thoroughly tested and checked prior to shipment.2. We provide pre-sales technical advisory services, technical maintenance training and operational training services.3. We provide free repair for main spare parts within warranty period according to warranty agreement.4. We provide upgrades and maintenance for software system within warranty period.5. We provide technical maintenance and repair for third-party hardware and software products according to third-party manufacturer's warranty-grade.6. We provide preferential lifetime maintenance of all equipment, spare parts are charged according to the prevailing market price beyond warranty period.
FAQ:
1. Is any kind of gas needed?
Nitrogen or argon is ok as auxiliary gas for laser welding.
2. Is professional technician needed to operate this machine?
No. It's easy to operate and 0 experience worker can operate it and make it.
3. Is wire filler needed or not?
For thick material welding or if there's gap, wire filler is needed, which can increase the welding strength and penetration.
4. What type of welding wire is needed ?
Using gas shielded welding wire, diameter:0.8mm,1.0mm and 1.2mm.
If you have any questions, Please contact us !
