Custom Disposable Paper Cup Forming Machine for Hot Beverage Hot Tea Hot Drink

Product Description

Our Advantages

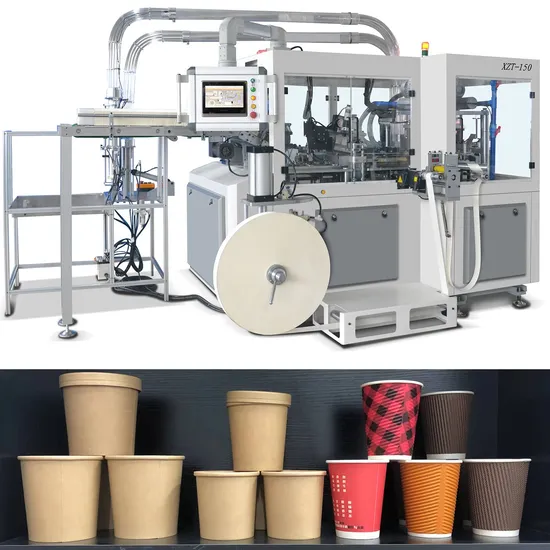

XZT-150 features full servo driven technology throughout the entire machine. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion. It replaced the market almost gear/ chain transmission and cam design paper cup machine it provides flexibility,speed,affordable capital cost and low maintenance.
Adopts crankshaft and servo motor control instead of traditional cam transmission, no oil lubricant ,which solved the negative effects of cam and bearing wearing and impacting while machine running at high speed. This breaks through the traditional paper cup machine must using cam to control the lifting and time .
XZT-150 changed the working procedure of bottom sealing . First Leister hot air preheating the cup body,then the cup bottom paper coming .This procedure makes fast sealing while the hot and cold paper touched each other. Then the second Leister hot air heating the bottom to go next knurling process. It makes the paper cup bottom seal more firmly while machine running at high speed . Traditional paper cup machine they do the double bottom heating after bottom paper come to the cup body. XZT-150 new design makes the bottom knurling much better.
Product Parameters

Model	XZT-150 Paper Cup Machine
Bowl size	4-16oz
Materlal	170-380GSM single or double PE/PLA coated paper
Speed	140-160pcs/min
Power Supply	3phases 380V 50Hz,34KW(running consumption is 14KW)
Air Supply	0.6Mpa(running consumption 0.5Nm3/min)
Dimension	2460*1620*1780mm
Weight	3000kgs
