Superior Quality Wear-Resisting Cloth PTFE Silicone Coated Fiberglass Fabric

Product Description

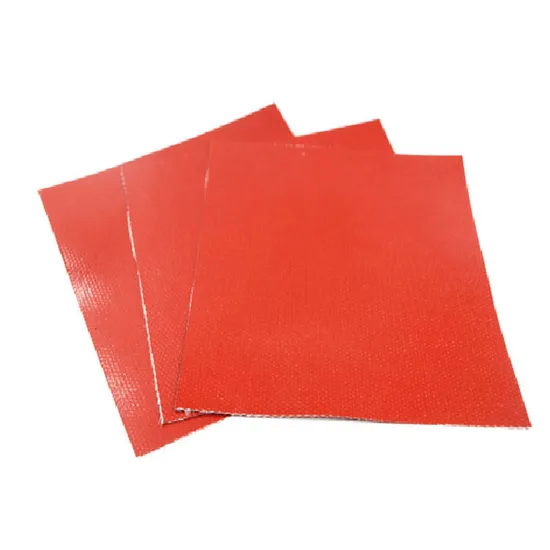

Silicone fiberglass fabrics
The Silicone rubber coated fiberglass fabrics are made of fine fiberglass with excellent capacity of high temperature and corrosion resistance, coated and rolled with silicone rubber, which is a brand new product with good performance and multiple applications.
Feature:
1. temperature resistance, it can continuously work under -70ºC to 230ºC
2. Weather ability: resistance to ozone, oxygen, sunlight and aging, long using life up to 10 years.
3. good electric insulator, dielectric constant 3~3.2, break down voltage between 20~50KV/mm,
application:
1)Electric insulation: Silicon rubber coated fiberglass cloth have high grade of electric insulation and bear a load of high voltage. It fits for making products like insulation cloth and sleeves etc.
2) Non-metallic compensator: used as pipeline flexible coupling, it helps to avoid damage caused by heat expansion and cold contraction. This membrane material specially fit for use in industries of petroleum, chemical engineering, cement and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.
3) Anti-corrosion sector: It is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.
4) Others: Apart from above application, it can also be used as sealing material, temperature resistant and anti-corrosion conveyor belt and packaging material.

Material	Model	Thickness	Tensile Strength	bursting strength	combustible	width
glass fiber High temperature Silicone rubber	5013	0.13	1500/1200	2.0	≤25%	0--1500
	5025	0.25	1800/1500	2.1	≤25%	0-1500
	5040	0.40	2000/1600	2.2	≤25%	0-1500
	5050	0.50	2200/1800	2.3	≤25%	0-1500
	5060	0.60	2400/2200	2.4	≤25%	0-1500
	5070	0.70	2500/2300	2.4	≤25%	0-1500
	5080	0.80	2600/2400	2.5	≤25%	0-1500
	5090	0.90	2800/2600	2.5	≤25%	0-1500
	5100	1.00	3000/2800	2.6	≤25%	0-1500
	5120	1.20	3400/3000	2.5	≤25%	0-1500
	5150	1.50	3700/3300	2.3	≤25%	0-1500
	5200	2.00	4200/3800	2.2	≤25%	0-1500
