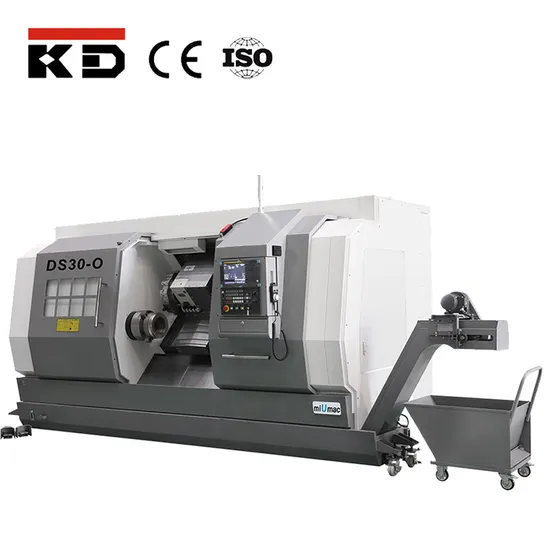

Metal CNC Slant Bed Lathe Machine Tool Kdcl-30: 650mm Swing, 2500rpm Spindle Speed, 90mm Bore
Basic Info.
Model NO.
KDCL-30
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
±0.03mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Max. Swing Over Bed
650mm
Max. Speed of Spindle
2500rpm
Spindle Bore
90mm
Spindle Nose
A2-8
Main Motor
18.5/22kw
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
410 Sets/ Year
Product Description
PRODUCT SPECIFICATIONS| MODELS | KDCL-30 |
| CAPACITY | |
| Max.swing over bed | Ф650mm |
| Max.cutting diameter for disc parts | Ф500mm |
| Max.cutting diameter for axle parts | Ф370mm |
| Max. cutting length | 1000mm |
| SPINDLE | |
| Spindle bore | Ф90mm |
| Spindle nose | A2-8 |
| Spindle speed | 2500rpm |
| TRAVEL | |
| X travel | 270mm |
| Z travel | 1060mm |
| FEED | |
| Rapid feed for axis X | 16m/min |
| Rapid feed for axis Z | 20m/min |
| TOOL POST | |
| Tool number | 12 ways hydraulic turret |
| Outside diameter of cutting tool shank | 25×25mm |
| Inner dia.of cutting tool shank | Ф40mm |
| TAILSTOCK | |
| Tailstock sleeve dia. | Ф100mm |
| Tailstock sleeve travel | 200mm |
| Taper hole of tailstock quill | M.T.No.6 |
| OTHERS | |
| Spindle motor power | 18.5/22kw |
| Bed structure | 45° slant bed integrated with stand |
| Min.input | 0.001 |
| Repeatability | ≤0.006mm |
| Hydraulic chuck | 12″ |
| Overall dimensions(L×W×H) | 5500×1980×2260mm |
| Net weight | 7000kg |
PRODUCT CONFIGURATION
