Horizontal Big Spindle Bore Qk1335 Heavy Duty CNC Pipe Threading CNC Machine

Product Description

Horizontal Big Spindle Bore Qk1335 Heavy Duty CNC Pipe Threading CNC Machine

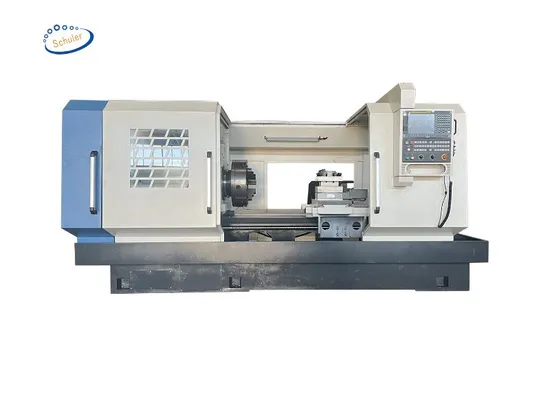

Product Picture:
Feature: CNC Pipe Threading Lathe Machine tool is mainly designed to process all kinds of internal and external pipe threads including metric,inch,module,DP and taper threads,as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks.
This series lathe machine is widely used in industries including petroleum exploiting,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to realize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Carriage and guide way contact surface pasted with Turcite B to maintain long-term accuracy. Standard accessories: Fanuc 0i TF controller
4 position NC turret
Coolant system
Lubricating system
Work lamp
Semi closed cover
Manual tail stock
Double chucks
Rear support brackets
Pad iron
User manual
Operate tools Optional accessories: CNC system Siemens, GSK etc
Servo turret, Hydraulic turret, 6 position turret
Chip conveyor
Full closed cover
Hydraulic tail stock
Steady rest
Follow rest
Grinding attachment CNC Lathe Technical Parameters:

ITEM		UNIT	QK1335
Max dia.swing over bed		mm	1000
Max dia.swing over cross slide		mm	610
Max.length of work-piece		mm	1500
Pipe threading range		mm	Φ150-350
Width of bed		mm	755
Spindle bore		mm	360
Spindle center height		mm	500
Power of spindle motor		KW	22
Mode of spindle speed			Two gears, smooth adjustment
Range of spindle speed		r/min	L:30-130 H:65-260
Max.traverse of X/Z		mm	X:450 Z:1250
X/Z rapid traverse		mm/min	4000/5000
Tailstock quill	Diameter	mm	160
	Travel	mm	300
	Taper		Morse NO.6
	Model		SLD170A04N
Turret	No.of tool stations		Vertical four-station
	Dimension	mm	32×32
	Turret indexing time	s	5.6
Chuck			K66-780 4- jaw electric chuck
Positioning accuracy		mm	0.020
Repositioning accuracy		mm	0.01
Overall dimensions(L*W*H)		mm	4900×2200×2300
Machine weight		T	12

CNC Lathe Details Picture:

CNC Lathe Package Delivery:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
Factory Information.
FAQ:
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos? ---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Video.
We can provide on-site training and commissioning Video.
We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
9.Q: How about your machine quality?We are worry about the quality.
---->A: Shandong Schuler Heavy Machinery Co.,Ltd focused on cnc lathe machines for up to 10 years, is China's mature brand. We "quality of survival" management philosophy, theNew Mini Hobby CNC Lathe Brand Machining Prices CK6140 has won more and more customers love and support, we have a field factory, on the quality, you are welcome to visit the field at any time.
