ACSR bare conductors high voltage acsr cables

Product Details

Product Description

Product Description
ACSR bare conductors high voltage acsr cables
Product Description
ACSR ferret conductor are used extensively for overhead ground wires, river crossing etc. These ACSR conductor are available with us in various types for meeting the exact requirements of clients. Used as bare overhead transmission cable and as primary and secondary distribution cable.

S/N.	Code Name	Construction		S/N.	Code Name	Construction
1	MOLE	6/1/1.50		12	RACCOAN	6/1/4.09
2	SQUIRREL	6/1/2.11		13	OTTER	6/1/4.22
3	GOPHER	6/1/2.36		14	CAT	6/1/4.50
4	WEASEL	6/1/2.59		15	HARE	6/1/4.72
5	FOX	6/1/2.79		16	DOG	6/4.72+7/1.57
6	FERRET	6/1/3.00		17	HYENA	7/4.39+7/1.93
7	RABBIT	6/1/3.35		18	LEOPARD	6/5.28+7/1.75
8	MINK	6/1/3.66		19	COYOTE	26/2.54+7/1.91
9	SKUNK	12/7/2.59		20	TIGER	30/7/2.36
10	BEAVER	6/1/3.99		21	WOLF	30/7/2.59
11	HORSE	12/7/2.79		22	LYNX	30/7/2.79
Standard		BS 215(Part 2), NFC 34120, ASTM B232, AS1220, ,DIN48204,IEC61089

Note:
(1) all aluminium conductor (AAC)
(2) all aluminimum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) aluminimum conductor aluminimum alloy reinforced(ACAR)

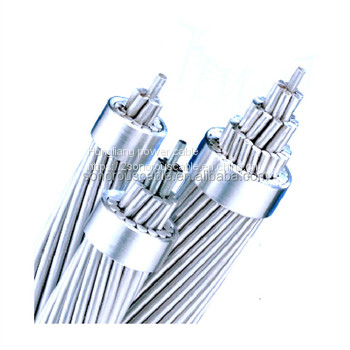

Picture of ACSR ferret conductor:

Packaging & Shipping
ACSR ferret conductor
Company Information
Hongliang cable co.,ltd (Headquarters) is one of the professional cable &wire manufacturer in China, which was established in 1988, is the production of cable products, research and development, sales in the integration of professional, modern enterprise.
Our main cable:
Our company mainly produces (1-35 kV )Low and Medium Voltage cable, XLPE cable, PVC insulated power cable,Steel wire armoured cable, AAC cable, AAAC cable, ACSR cable,Control cable, Rubber cable,High temperature resistant cable, Overhead cable, Low smoke halogen-free cable.
