Enclosed Type High Speed Disperser

Product Description

Basic Info.

Model NO.	HSDH	Mixer Type	Agitator
Working	High Speed Mixer	Stirring Type	Diving
Application	Liquid with Suspended Solids, Liquid	Application Area	Fine Chemicals
Layout Type	Verticle	Mixing Drum Shape	Disc
Operating type	Cycle Operating	Condition	New
Voltage	380V/50Hz, Can be Customized	Motor	Siemens or ABB Brand
Material Viscosity	Less than 50000cps	Accessory	with Cover, Clamping Device
Trademark	Hoosun	Origin	China
HS code	84798200	Production Capacity	1-2000L

Product Description Introduction High speed disperser is applied in mixing,blending and dissolving liquid-liquid or liquid-solid materials. It accelerates the blending and dissolving, forming a stable fluid in short time. The high speed disc blade rotates at high speed, dispersing and mixing materials completely. -the paste is in annular flow which creates strong vertex. Surface particales drop to the bottom. -and forms a turbulent flow at the disc edge. Paste and particles are highly sheared and impacted -two beams formed outside the area. The paste is fully circulated and stirred. - there is a laminar flow under the blade. Paste in different speed interdiffuse and get disperserd. Details

Model	Power(kw)	Speed(rpm)	Capacity(L)	Disc Dia.(mm)	Stroke(mm)
HSDH-2.2	2.2	0-1440	50-150	150	600
HSDH-4	4	0-1440	20-200	200	900
HSDH-7.5	7.5	0-1440	100-300	250	900
HSDH-15	15	0-1440	100-500	300	900
HSDH-22	22	0-1440	100-1000	350	1100
HSDH-30	30	0-1440	200-1200	400	1100
HSDH-37	37	0-1440	300-2000	400	1600
HSDH-45	45	0-1440	500-2000	450	1600
HSDH-55	55	0-1440	600-2500	500	1600
HSDH-75	75	0-960	≤4000	550	1800
HSDH-90	90	0-960	≤6000	600	1800
HSDH-110	110	0-960	≤8000	700	2100

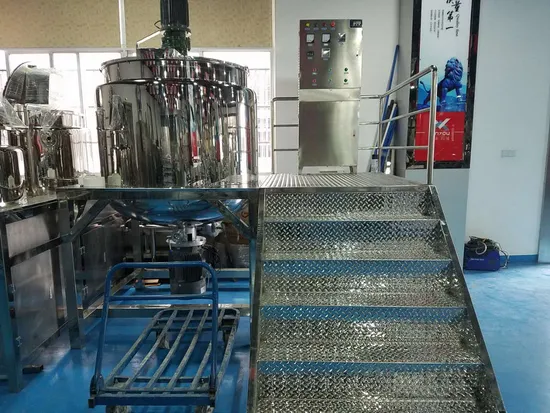

Note: The above details is tested with water. Specificions will differ according to the materials property and requirements. Photo for reference Company Profile
