V341/V340VT Water proof industrial vibration sensor,Integrated side exit cable vibration & temperatur sensor

Product Details

Product Description

Product Description

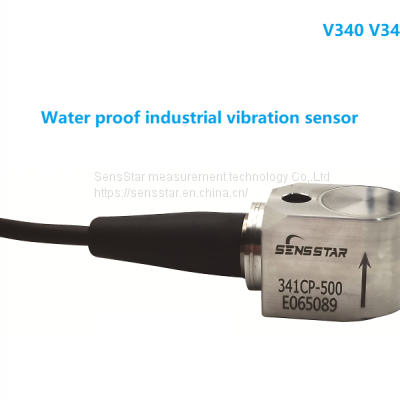

V341/V340 Water proof industrial vibration sensor,Integrated side exit cable vibration & temperature sensor:
Model 341A is an water proof IEPE accelerometer permitting vibration measurements. 341A features an annular shear ceramic crystal which exhibits excellent output stability over time. The accelerometer incorporates an internal circuit with in a two-wire IEPE system which transmits its low impedance voltage output through the same cable that supplies the constant current power. Signal ground is internal shielded and isolated from the outer case of the unit. Polarity inversion protection for the amplify circuit is inherent in the circuit design. The welded stainless-steel construction provides a hermetic housing. Internal glass insulated connector provides long-term stability over the operating temperature range. Side outlet cable enable the compact installation and discretional cable direction. In addition to adhesive mounting, 341A has Ø6.4 through holes for screw mounting on the test object. The 341A provides wide frequency response and shock resistance, which is ideal for industrial vibration monitoring under incidental shock environment.
V340A-LF is LF industrail vibration sensor
V340AT is vibration with temperature signal combined sensor,
V341A is Integrated side exit cable vibration sensor,
V341AT is Integrated side exit cable vibration & temperature sensor .
V341AT-LF is Integrated side exit cable LF vibration & temperature sensor .
Features
• Water proof
• Side integrated cable
• Wide frequency response
• Rugged design
• High sensitivity
• Hermetic seal
• Case isolated
• Temperature output
Application
• Railway detection
• Gear box monitoring
• Bearing detection
• Machine monitoring
