Concrete Block Making Machine Qt15-15 Automatic Hydraulic Cement Hollow Block Paver Brick Making Machine

Product Description

Product Parameters

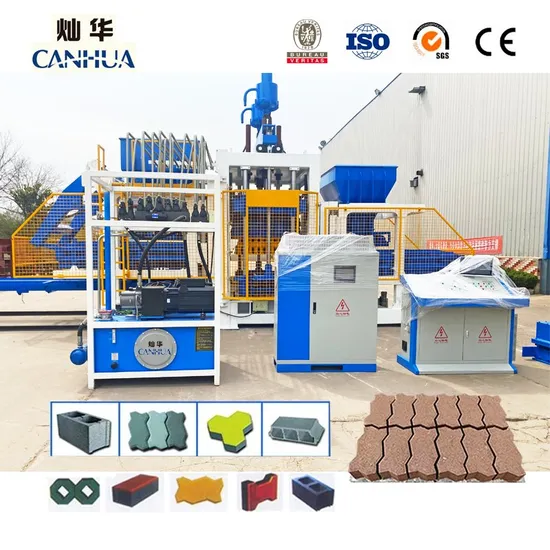

QT15-15 New Automatic Concrete Hollow Block Making Machine
PLC control system / Siemens motor / Omron switch / International standard steel / Heat treatment mould
QT15-15 block machine is a new type big capacity automatic machine independently developed by our company.It equipped with automatic pallet feeding machine and color feeding system,total production line fully automatic. Also adoped with mechanical hydraulic PLC controlled synthesis technique. Its characteristic is high efficient, easy-operated and easy-maintained. Block molding mainly by hydraulic, machinery as sideline, vibrate and press to finish molding blocks.
The compressive strength of all blocks more than 21 MPa, compactness is high, impermeability and freeze resistance is better, and excellent capacity of sound insulation, heat insulation, insulation,external dimensions are precise.
The material can be fly ash, slag, gangue or other industrial waste, river sand, gravel, cement, etc. Make different sizes of hollow blocks, porous blocks, curbs, pavement blocks.It is full automatic ,adopts Siemens brand PLC and Touch Screen .Vibrate motors also Siemens brand. So our machine runs stable and effective . Our machine makes the blocks with very good density and high quality. I am sure you will satisfied with it.

Main Tehcnical Specifications
Overall dimension	12500x2500x3800mm
Weight of host machine	19T
Vibration force	180-200KN
Cycle time	15-20s
Motors power	75KW
Vibration frequency	4500-6500r/min
Pallet size	1400x1100x35mm
Concrete mixer	CMP1500
Conveyor belt	12m Belt conveyor
Raw materials	crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products	Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products,slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

Theoretical Productivity
Our Advantages
1. Particular storage and description material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.
2. Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.
The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis
3. PLC intelligent control: Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn't need a professional person but only need a simple training to the operator.
4. It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
----------- Accessories---------
All of our brick machine color,voltage,brick mould size and type can be customized!
Our Customer
Company Profile
Shandong Canhua International Trade Co.,Ltd is the professional manufacturer and exporter for block machine technology. Our company is located inLinyi city Shandong Province and our factory has three manufacturing bases that cover an area of 500 acres and a plant construction area of 100,000 square meters. We are always developing advanced products to international standards to meet consumer demands.We had exported to more than 116 countries from the Philippines, Russia, Egypt, South Africa, Ghana, Oman, India, Armenia, Israel, Chile etc. and have an exceptional high reputation from our customers. We cooperate with SIEMENS for Motors and PLC intelligent control system,Ffamous brand electrical equipment and YUKEN for the hydraulic operations to insure our machines have the highest quality standrads with a stable working status.We have more than 50 technician to ensure superior installations and after sale service to assist customer to install the machine and perfrom the proper training abroad. We warmly welcome customers from all over the world come to visit our factory and discuss long term cooperation.
1. Professional R&D Team Company owns research,design,manufacture,sale after-sales service. 2.Excellent Service
Multiple payment method,provide free training,free spare parts,24 hours online service,provide intergrated block making solutions
3.European technical standards,Strict quality control
Every machine before delivery,need be carefully checked to meet domestic quality standard and export standard.
Welcome to the video inspection at any time!
