High Temperature Microwave Laboratory Atmosphere Furnance Vacuum Oven

Product Description

Description

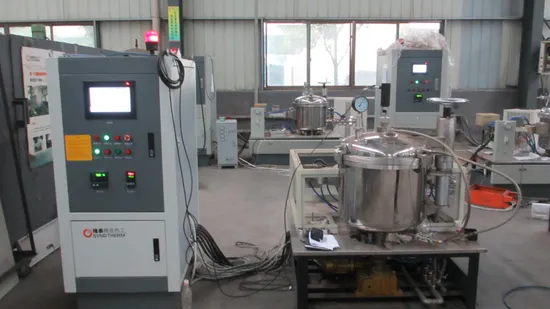

HAMiLab-Vseries Microwave multi-atmosphere Furnace is the 3rd generation of SYNOTHERM standardized high temperature microwave multi-function laboratory system. It applies to all kinds of materials' sintering, burning, firing, compounding, calcining, melting and other heat treatment in the multi-atmosphere (air oxygen, nitrogen, argon, fixed gas and weak reductive atmosphere, etc.). HAMiLab-V is composed of a double-layer, water-cooled, vacuum sealed, stainless steel heating chamber that is attached to vacuum and gas-infiltration systems that provides a highly controlled environment for processing samples. Metals, technical ceramics, glasses, PM parts, virtually any system that is studied in a laboratory can be processed in the HAMiLab-V to yield end-products of the finest quality.
Features:
- Adopt the industry-grade microwave source to ensure the furnace's long time continuous steady running.
-Microwave output power adjustable freely, no gear limitation, to achieve accurate temperature control curve;
-Set with two gas passages (input and output), atmosphere can be controlled accurately
-Adopt imported high-precision IR thermometer to measure directly the temperature of the sample.
-Be equipped with embedded micro-computer control system, offer manually operation, automatically operation, and constant temperature operation three modes, shifted freely.
-All kinds of original crucibles and insulation structures available for choice, no pollution to materials.
-It can deal with different kinds of materials, with good commonality;
-Set with the corrosion-resistant exhaust passage, exhaust rapidly the gas produced in the heating process.
-Touch screen display and operation, equipped with windows operation system, able to be connected with PC; Capable of set and store many temperature control curves. Store automatically running records, compatible with printer; real time display the temperature control curve, to achieve the dynamic monitor of the heating process;
- Safe and reliable microwave shield design, multi-ply protection from microwave leakage.

Application field: Powered and particles materials' calcination and systhesis; Finished products' sintering; Calcining, firing MOX carbon thermal reduction Metal melting and heating treatment Carbonization pyrogenation Organic cracking Technical specification:

Specification
Model	HAMiLab-V3000	HAMiLab-V4500	HAMiLab-V6000
Output Power	0.2- 2.85kW variable	0.3- 3.9kW variable	0.6 - 5.8kW variable
Rated power	6KW	8kw	12kw
Microwave Frequency	2450 ± 25MHz
Overall Dimensions (mm)	800 × 2200 × 1800 (W×L×H)
Cavity Dimensions (mm)	Φ500 × 560 (Dia. × H)
Effective Heating Zone (mm)	100x100x60, Φ110x100
Maximum Temperature	1600oC
Temperature Measurement	Raytek IR pyrometer, 450 - 2250oC
Control System	PLC (18 sections of temperature control), embedded system connected to laptop via USB, with data storage and printing functions.
Control Panel Display	8" touch-pad LCD or laptop
Temperature Control Precision	±0.1%
Power Control Precision	< ± 2%
Vacuum Limit	< 100 Pa
Atmosphere Control	2 channels (optional)
Process Atmosphere	Air, oxygen, nitrogen, argon and weak reductive atmosphere, etc.
Microwave Leakage	< 1mW/cm2 (Safety standard < 5mW/cm2)
Cooling	Water
Site area	2m2
