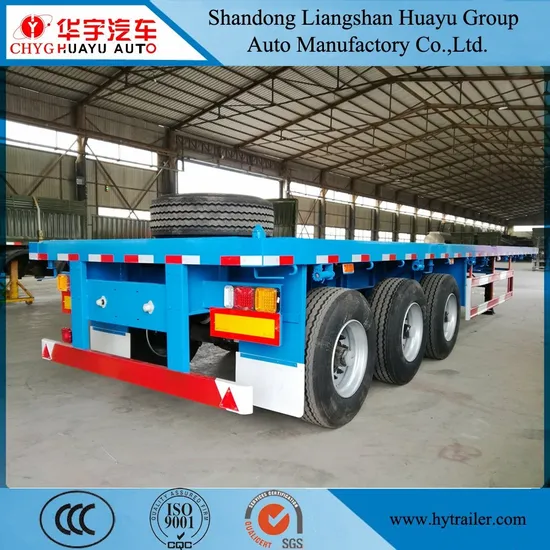

Standard Container Trailer with Air Suspension for Trucks Tractor
| US$9,000.00-20,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
LHY9400P
Certification
ISO9001, CCC, SGS/BV/TUV
Wheel Base
7000-8000mm
Tread
1840mm
Grade
Heavy Duty
Types of Suspension Systems
Leaf Spring Suspension
Shape
Flatbed
Axle Number
3
Tire Number
12
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Steel
Condition
New
Use
Container Transport
Axle
BPW/Fuwa Famouse Brand
Tire
12r22.5/12.00r20
Kingpin
2" Bolt in Type
Landing Gear
Jost Brand
Light
LED
Spare Tire
1PCS
Tool
1set
Transport Package
Load by Container
Specification
12.5*2.5*1.5m
Trademark
HYD
Origin
China Shandong
HS Code
8716900000
Production Capacity
12000set/Year
Product Description
Standar Product Description12.5M 40Ton 3 AXLE FLATBED SEMI TRAILER | |
| DIMENSIONS | |
| Tare weight | 6800kg |
| Size | 12500mm*2500mm*1500mm |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. |
| Side beam | 16# channel steel(Q235) |
| Cross member | 10# channel steel(Q235) |
| Floor | 3mm diamond plate |
| Axle | 13 Ton *3axles |
| Suspension | Three axles with mechanical suspension |
| Leaf spring | Leaf spring 13mm*90mm*10 piece *6 sets |
| Tyre | 12R22.5*12units |
| Wheel rim | 9.0-20 *12pcs |
| Kingpin | 2"/3.5" bolt-in king pin |
| Landing gear | 28Ton two-speed, manual operating ,heavy duty landing gear |
| Braking system | RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Without |
| Twist lock | 12 pcs |
| Electrical system | Voltage 24V, Receptacle 7 ways (7 wire harness), Use high-grade LED lights. One set 6-core standard Cable. |
| Painting | Complete chassis sand blasting to clean rust , 1coat of anticorrosive prime,2coats of final paint. Prevention of seawater corrosion with wax spray. |
| Accessories | One standard tool box.one spare tire carrier,one crank,one shaft head wrench,Rope hook casting model.Tight rope device *12units |
| Date of delivery | 15workdays |
Product Parameters
12.5M 40Ton 3 AXLE FLATBED SEMI TRAILER | |
| DIMENSIONS | |
| Tare weight | 6800kg |
| Size | 12500mm*2500mm*1500mm |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. |
| Side beam | 16# channel steel(Q235) |
| Cross member | 10# channel steel(Q235) |
| Floor | 3mm diamond plate |
| Axle | 13 Ton *3axles |
| Suspension | Three axles with mechanical suspension |
| Leaf spring | Leaf spring 13mm*90mm*10 piece *6 sets |
| Tyre | 12R22.5*12units |
| Wheel rim | 9.0-20 *12pcs |
| Kingpin | 2"/3.5" bolt-in king pin |
| Landing gear | 28Ton two-speed, manual operating ,heavy duty landing gear |
| Braking system | RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Without |
| Twist lock | 12 pcs |
| Electrical system | Voltage 24V, Receptacle 7 ways (7 wire harness), Use high-grade LED lights. One set 6-core standard Cable. |
| Painting | Complete chassis sand blasting to clean rust , 1coat of anticorrosive prime,2coats of final paint. Prevention of seawater corrosion with wax spray. |
| Accessories | One standard tool box.one spare tire carrier,one crank,one shaft head wrench,Rope hook casting model.Tight rope device *12units |
| Date of delivery | 25workdays |
Packaging & Shipping 2 Units put into one 40HQ container
Wax spray and one stack of 3 sets to reduce shipping fee.
Installation Instructions A.Steel auto cutting
B.Main beam auto submerged arc welding
C.Chassis reversal ensure every part been welding well
D.Shot blasting for rust cleaning
E,F.Welding by experienced worker
G.Final cleaning welding slag by worker
H.Dust-free painting line
Company Profile
Our Advantages This 40ft flatbed semi trailers' payload is 40 tons. It could meet your transportation demand of container, bulk cargo. The front board design enhances the security when the platform trailer carries the long tube. etc.
The trailer chassis is designed according to Africa road conditions, we did the necessary reinforcement process to ensure its durability. Liangshan Huayu has rich experience in the overseas market. The flatbed trailer is one of our most mature design trailers. Its average working life is over 10 years.
