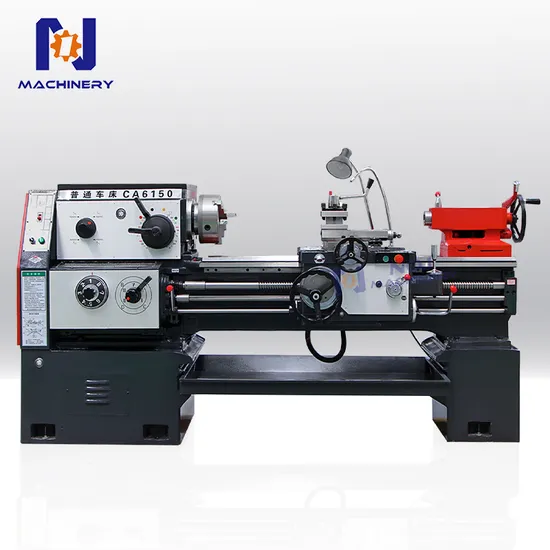

Manufacturers Lathe Machines Ca6150 Metal Lathe Machine 220V 380V Conventional Lathe Machine

Product Description

Product Description
CA series lathes are capable of turning various materials' end faces, inner and outer cylinders, conical surfaces, and other rotating surfaces. It can accurately process various metric, inch, module, and diametral pitch threads. In addition, tasks such as drilling, reaming, and pulling oil grooves can also be easily completed.
Product Parameters

PARAMETER ITEM	UNIT	CA6140A	CA6240A	CA6150A	CA6250A
Max. swing over bed	mm	400	400	500	500
Rotation diaeter on tool post	mm	210	210	300	300
Swing diameter in saddle x effective length	mm	-	630x210	-	720x210
Maximum workpiece length / Maximum turning length	mm	750/650 1000/900 1500/1400 2000/1900
Distance from spindle center to bed plane guide	mm	205	205	250	250
Spindle Bore/Spindle Bore Front Taper		Φ52/MT6[80]
Spindle speed series forward/reverse		24/12
Spindle speed range forward	r/min	50Hz:1-1600 60Hz:12-1680
Reverse	r/min	50Hz:14-1580 60Hz:16.8-1896
Vertical feed/Standard feed	mm/r	0.08-1.59
Minimum feed	mm/r	0.028-0.054
Maximum feed	mm/r	0.86-3.16
Rapid moving speed of tool holder	m/min	portrait4 horizontal2
Max stroke of upper/lower turret	mm	140/320	140/320	140/320	140/420
Rotation angle of tool rest turntable	.	±90
Distance from spindle centerline to tool support surface	mm	26
Tool holder section size	mm	25x25
Lead screw pitch	mm	12
Main motor power	kw	7.5
weight of lathe (750mm)	kg	1990	1990	2060	2060
weight of lathe (1000mm)	kg	2070	2070	2140	2140
weight of lathe (1500mm)	kg	2220	2220	2290	2290
weight of lathe (2000mm)	kg	2570	2570	2640	2640
Lathe outline size(750mm)	mm	2418x1000x1267	2418x1000x1267	2418x1037x1312	2418x1037x1312
Lathe outline size(1000mm)	mm	2668x1000x1267	2668x1000x1267	2668x1037x1312	2668x1037x1312
Lathe outline size(1500mm)	mm	3168x1000x1267	3168x1000x1267	3168x1037x1312	3168x1037x1312
Lathe outline size(2000mm)	mm	3668x1000x1267	3668x1000x1267	3668x1037x1312	3668x1037x1312

Detailed Photos
MANUAL CHUCK
The standard version is equipped with a 3-jaw or 4-jaw manual chuck. Customers can choose chucks of different sizes according to their requirements. A hydraulic chuck
FOUR-STATION TOOL HOLDER
Four-station tool holder,fast-moving mechanism,can be operated with one hand, and tool holder pro-tection is optional.
QUENCHED TAILSTOCK
The tailstock sleeve is treated with high-frequency quenching and carefully ground to prevent wear and tear.
HIGH PRECISION SCREW
It has good wear resistance and accuracy retention,ensuring that the machine can be used for a long time and has a long life.
