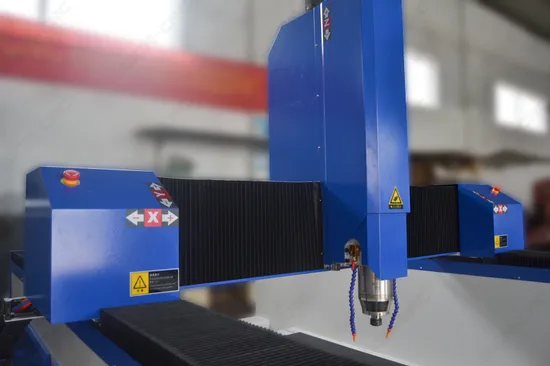

Stone CNC Router Machine Sign-1318/9015/1325 with CNC Engraving Cylinder for Stone Processing
Basic Info.
Model NO.
Sign-1318/9015/1325
Type
CNC Cutting Machine
Usage
Ceramics, Glass, Fire Brick, Red Brick, Granite, Marble, Acrylic
Application
Machinery & Hardware, Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
CE, FDA
Warranty of Core Components
1 Year
Machinery Test Report
Provided
Control System
DSP A11
Weight (Kg)
1000 Kg
Function
Cutting and Engraving
Transport Package
Woooden Box Packing
Specification
280*165*185cm
Trademark
SIGN-CNC
Origin
China
HS Code
84659900
Production Capacity
300sets/Month
Packaging & Delivery
Package Size
280.00cm * 165.00cm * 180.00cm
Package Gross Weight
1000.000kg
Product Description
Product DescriptionStone CNC Router Machine Sign-1318/9015/1325 with CNC Engraving Cylinder for Stone Processing
Application 1.Woodworking industry,Wooden door, furniture and decoration; Wooden crafts making; Redwood carving, Archaized furniture.Also can used in other industry.
2.Advertising industry, double face board and scutcheon, department brand, chest brand and the architecture board, ABS brand, the engraving and cutting of acrylic and the engraving of many jade article.
3.Electronic:electrocircuit, insulation materials, LED screen, family appliance shell and model carving.
| Model | SIGN -1318 |
| X, Y Working size | 1300*1800mm |
| Z feed Height | 300mm |
| Table Surface | T-slot working table |
| X, Y Structure | Rack and pinion drive, high precision 25mm square guide rail |
| Z Structure | High precision 25mm square guide rail and ball screw |
| Max. Power Consumption | (Without spindle) 2.0Kw |
| Max. Rapid Travel Rate | 33000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 5.5KW water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Stepper motors |
| Working Voltage: | AC380V/60Hz |
| Command Language | G code |
| Control System | NC Studio (option: DSP A11/ Mach3) |
| X,Y,Z repositioning Accuracy | ±0.01mm |
| X,Y Resolution | <0.01mm |
| Software | Artcam |
| Running Temperature | 0 degree - 45 degree |
| Relative Humidity | 30% - 75% |
